Crimson 37" To 63" Flat Panel Universal Tilting Mount - TP63A

Product Details

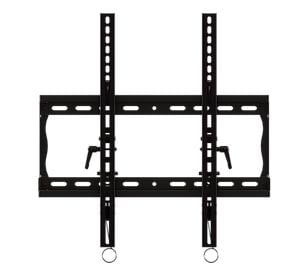

Crimson 37" To 63" Flat Panel Universal Tilting Mount, Model TP63A
Vertically adjustable tilting wall mount in portrait orientation with Universal
hole pattern to fit a wide selection of flat panel screens. Makes a secure installation
quick and easy, simply hang the screen and turn the pre-assembled securing screw
to lock in place. Open wall plate design and kickstand feature provides easy
access to wiring.
Features
Universal design
VESA compatible
Post-installation leveling
Click in place screen placement without use of tools
Portrait orientation
Pre-tensioned tilt mechanism for smooth adjustment
Open wall plate allows easy access for wiring
Lateral shift for perfect placement
Pre-sorted hardware pack for easy installation to wood studs or concrete
surfaces included
Specifications
TV size range: 37" – 63"+
Weight capacity: 200lb (91kg)
Max mounting pattern: 452x629mm VESA mounting patterns 75x75mm, 100x100mm,
200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm,
200x600mm, 400x600mm
Depth from wall: 2.2" (55.8mm)
Lateral adjustment: varies with screen
Tilt: +15°/-5°
Mounting surface: wood stud, concrete, cinder block or metal stud
(accessory required HT6)
Stud spacing: dual stud 16"
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color: black
Model number: TP63A
Approximate Dimensions
Height: 25.76"
Width: 19.3"
Depth: 2.2"
Approximate Weight
Unit: 9 lbs
Shipping: 15 lbs
Warranty Information
Manufacturer Warranty (authorized online retailer): 10 Year Parts
and Labor
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Tilting
Maximum TV Size Compatibility (in)
63
Minimum TV Size Compatibility (in)
37
Max Mounting Pattern
452x629
Mounting Pattern
75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 200x600mm, 400x600mm, 452x629mm
Tilt Adjustment (Degrees)
+15°/-5°
Warranty Information
Labor Warranty
10 Years
Parts Warranty
10 Years
Approximate Weight
Package Weight (lbs)
10
Approximate Dimensions
Package Size HxWxL (in)
5 x 11 x 32
