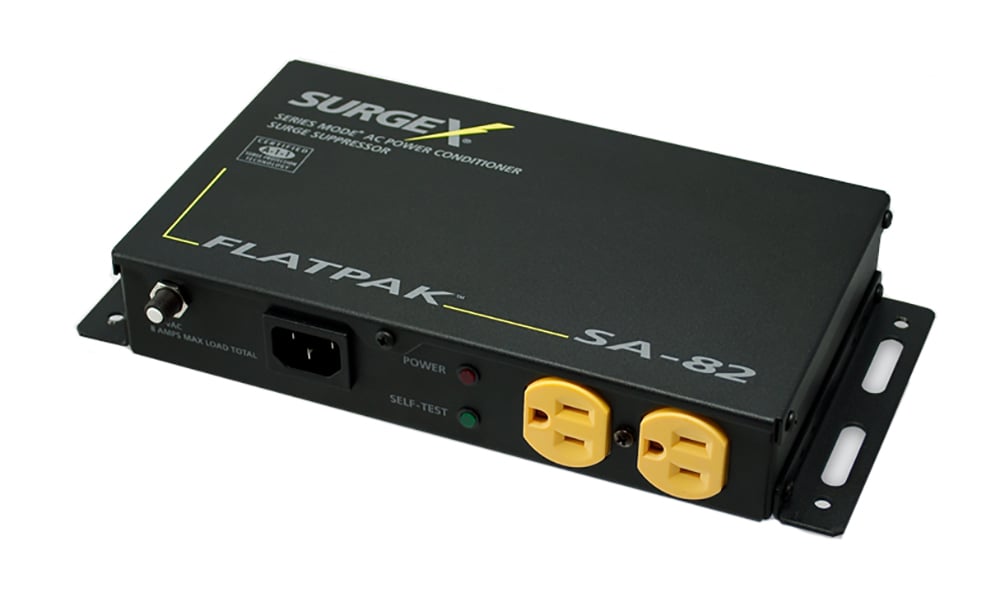

SurgeX FlatPak Surge Protector And Power Conditioner - SA-82

Product Details
SurgeX FlatPak Surge Protector And Power Conditioner - SA-82
When space is at a premium, the SurgeX FlatPak is the perfect choice to safeguard projectors, flat panels, and digital displays from harmful electrical transients. It is easily hidden behind or beside equipment and designed to integrate with wall and ceiling mounting systems.
Featuring Series Mode technology, the FlatPak provides non-sacrificial protection against surges, spikes, and electrical noise that cause AV equipment malfunction and downtime. It does not shunt surge energy to the ground and will not produce ground contamination or common-mode disturbances that cause hissing sounds and pixelation on AV equipment.
Available in two configurations, the SA-82 model is engineered for non-networked devices and the SA-82-AR offers remote IP control capabilities for networked devices. This lets technicians control any connected device not currently IP addressable to manage outlets, including on/off, scheduling, AutoPing, and power cycling.
If you’re looking for a compact solution that offers advanced power protection and installs out of sight, then look no further than the SurgeX FlatPak.
Features
Compact 3 lbs. design
Series Mode® power protection technology
Over Voltage Shutdown (with Auto Reset)
Remote IP control capabilities (SA-82-AR)
Non-sacrificial components
Magnetic shielding steel enclosure
Detachable 3' grounded 3-wire #18 line cord.
Specifications
Load Rating: 8A
Voltage Rating: 120V
Power Requirement (no load): 8 W
Surge Let-through Voltage (6000 Volt Surge): 0 Volts
Maximum Applied Surge Voltage: 6000 Volts *
Maximum Applied Surge Current: Unlimited (due to current limiting) *
Maximum Applied Surge Energy: Unlimited (due to current limiting) *
Endurance (C62.41-1991 category B3 pulses): 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
EMI/RFI Filter
Normal mode (50 ohm load): > 20dB 27kHz - 50MHz > 30dB 90kHz - 26MHz 30 dB @ 100 kHz; 56 dB @ 300 kHz; 64 dB @ 3 MHz; 24 dB @ 30 MHz
Common Mode ( 50 ohm load): > 10dB 360kHz - 50MHz > 20dB 2 MHz - 40MHz 9 dB @ 300 kHz; 16 dB @ 1 MHz; 28 dB @ 5 MHz; 35 dB @ 20 MHz
Under-Voltage Auto Shutdown: No
Over-Voltage Auto Shutdown: 145V
Over-Current Auto Shutdown: Circuit Breaker
Over-Temperature Auto Shutdown: None
Measurement Accuracy
Voltage: NA
Current: NA
Power: NA
Energy: NA
Temperature: NA
Network Port: No
Serial Port: None
Temperature Sensor Input: None
Auxiliary Relay Outputs: No
Contact Closure Input: No
Temperature Range: 5C to 35C
Humidity Range: 5% to 95% R.H. Non-condensing
Agency Listings: Conforms to UL Stds 1283 & 1449 Certified to CSA Std C22.2 No. 8
Approximate Dimensions
Height: 1.75"
Width: 5.31"
Depth: 9.06"
Approximate Weight
Unit: 3.4 lbs
Shipping: 5 lbs
* 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41
** Specifications subject to change without notice
