Audio-Technica Dual Moving Magnet Cartridge - ATVM95E

Product Details

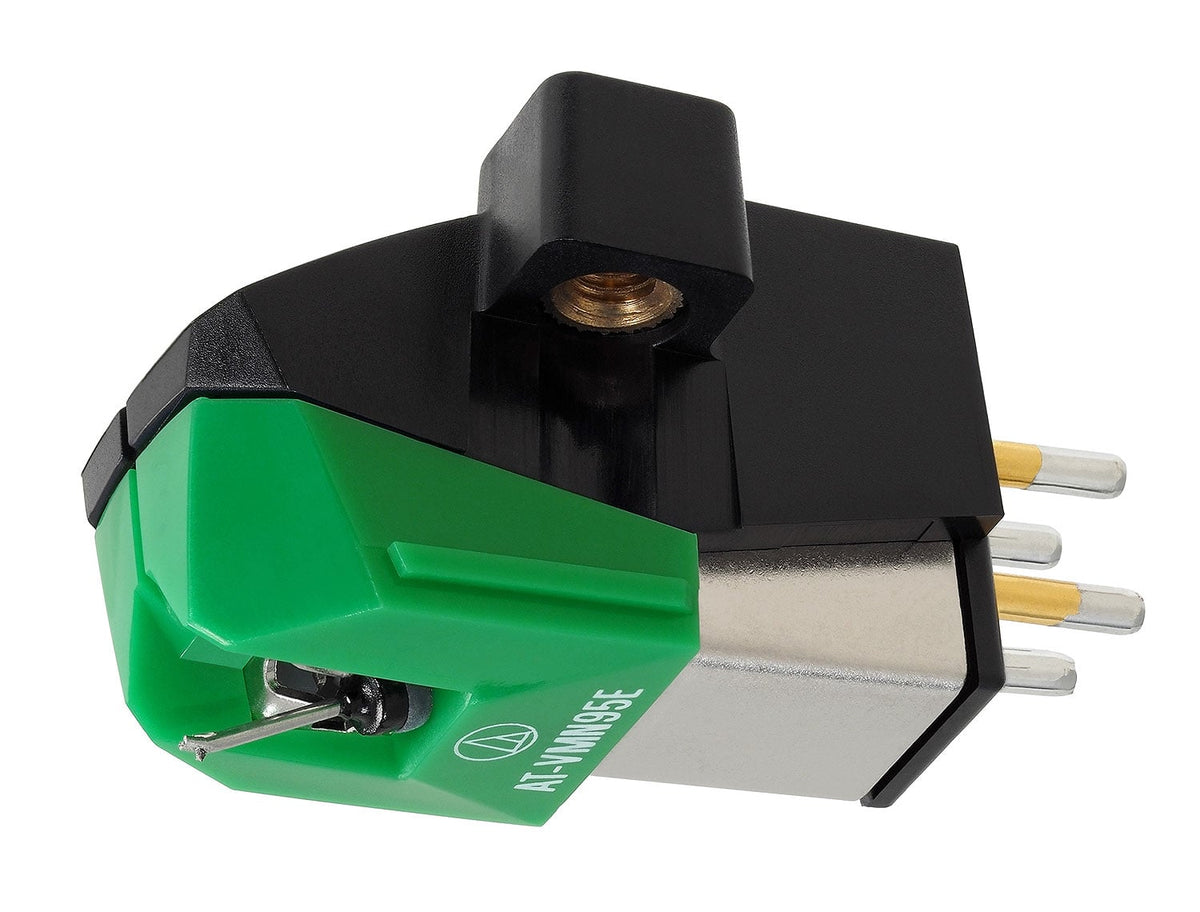

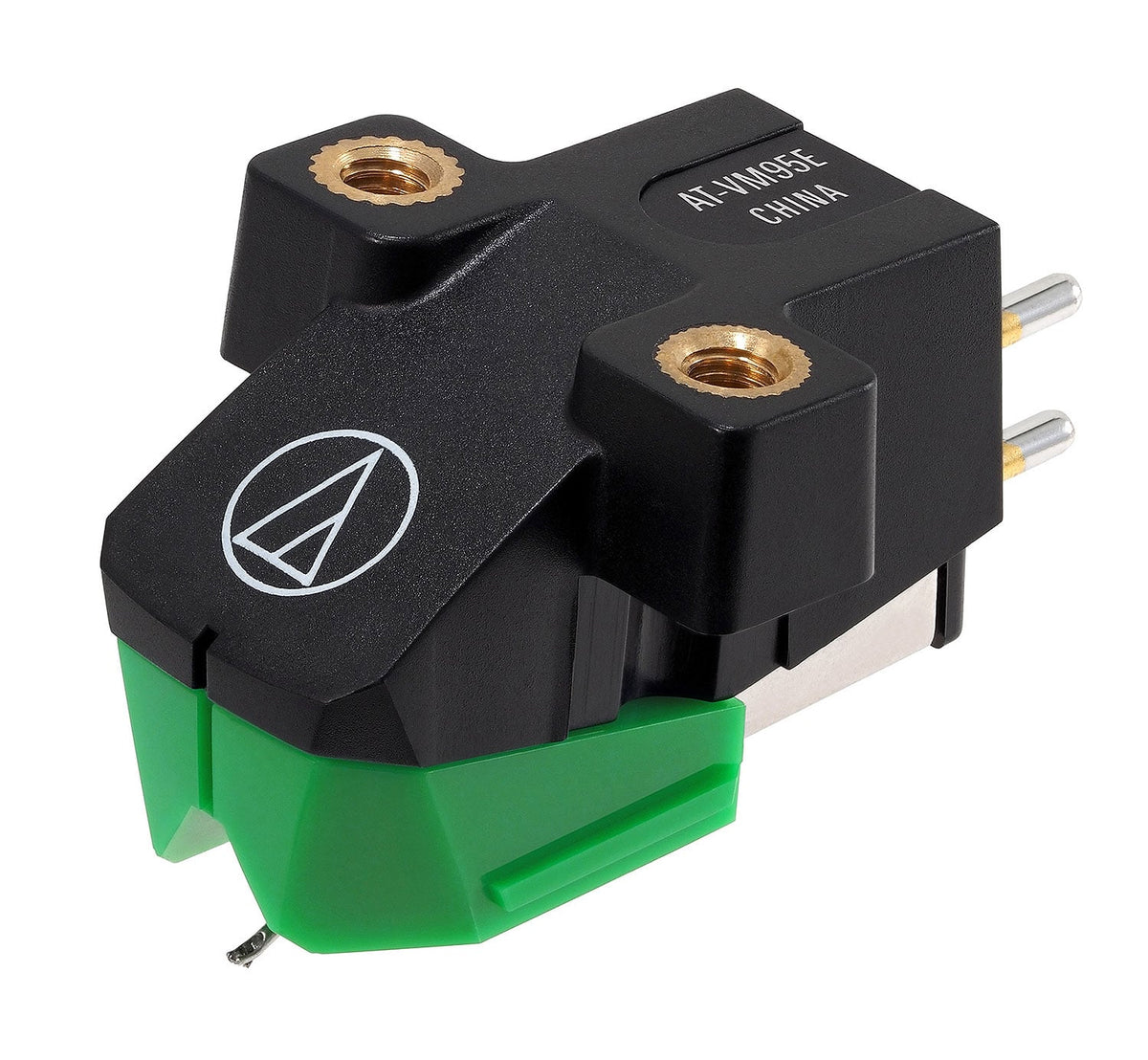

Audio-Technica AT-VM95E Dual Moving Magnet Cartridge
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
Aluminum cantilever
Specially wound coils increase output voltage
Durable low-resonance polymer housing
Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
Compatible with any AT-VMN95 replacement stylus
Specifications
Frequency Response: 20-22,000 Hz
Channel Separation: 20 (dB at 1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Coil Impedance: 3.3 k ohms (1 kHz)
DC Resistance: 485 ohms
Coil Inductance: 550 mH (1 kHz)
Load Capacitance: 100 to 200 pF
Output: 4.0 mV (1 kHz, 5 cm/sec.)
Channel Balance: 2.0 dB (1 kHz)

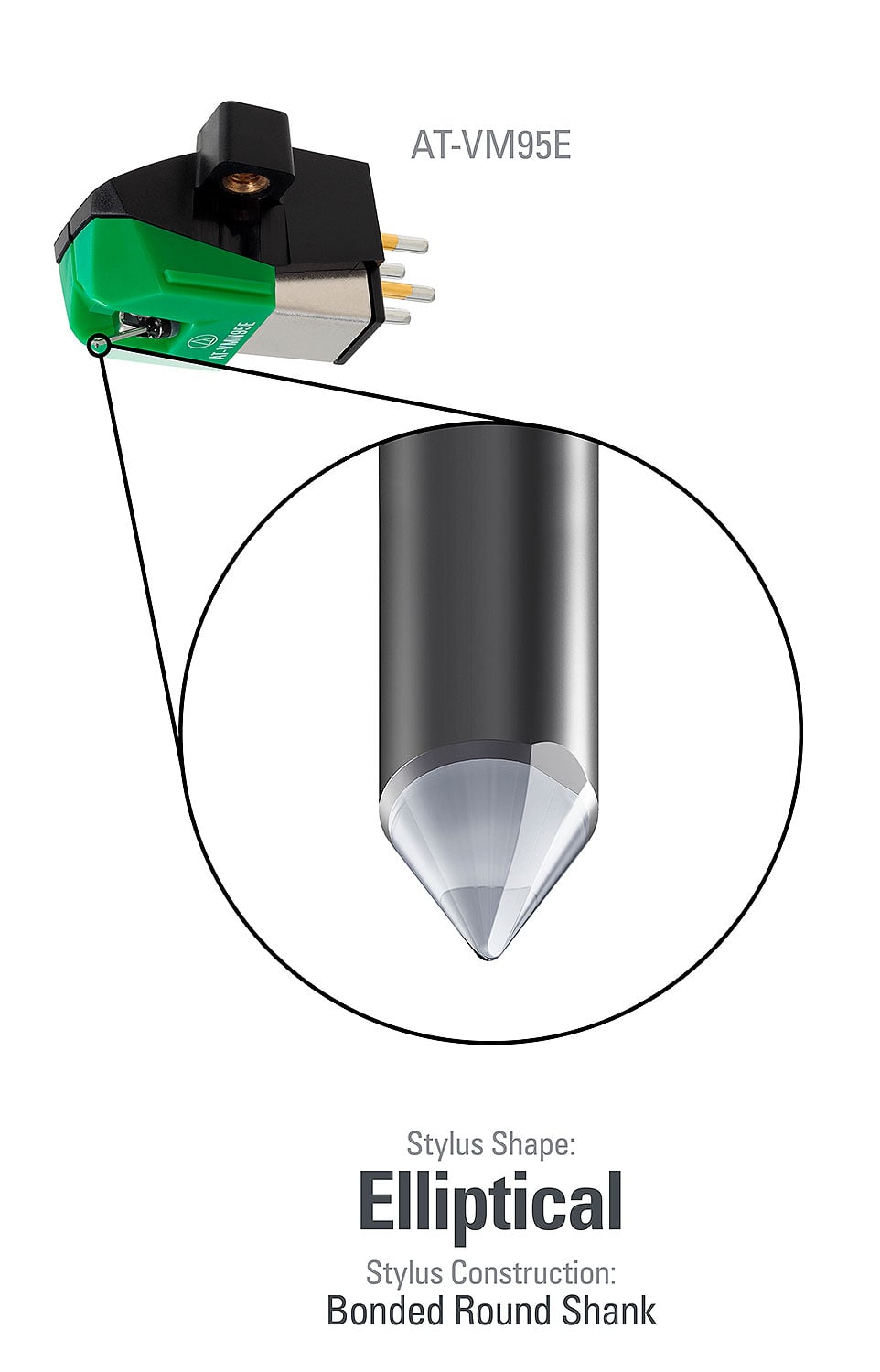

Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Aluminum pipe
Mount: Half-inch

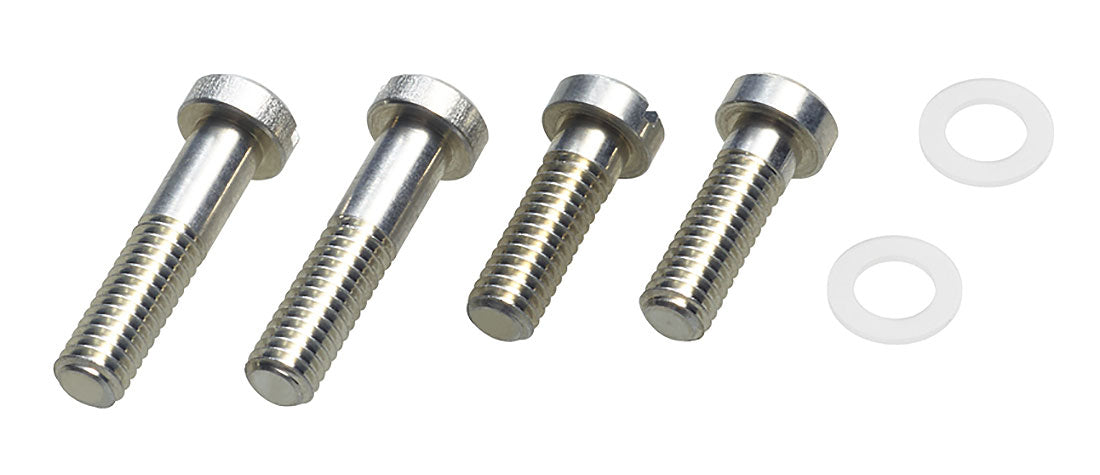

Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
Approximate Dimensions
Height: 0.68"
Width: 0.74"
Depth: 1.20"
Approximate Weight
Unit: 0.01 lb
Shipping: 1 lb
Warranty Information
Manufacturers Warranty(authorized online retailer): One Year Limited End-User Warranty
