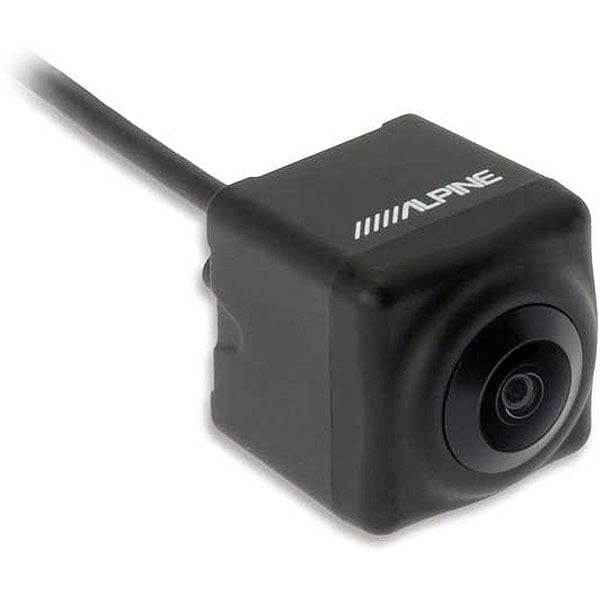

Alpine High Dynamic Range (HDR) Rear View Camera - HCE-C1100

Product Details
Alpine HCE-C1100 High Dynamic Range (HDR) Rear View Camera
When it comes to driving, you can't control everyone (or everything) else on the road, but you can boost your own safety with a rear view camera like the Alpine HCE-C1100. This rear view camera makes it easier than ever to parallel park, reverse large (or small) vehicles, and keep an eye on what's behind you before you move your foot off the brake pedal. The tiny camera is designed to deliver an HDR picture—instead of a fuzzy video feed, you'll see what's behind you in sharp clarity on your car's built-in screen.
Camera Quality & Signal Synchronization
Alpine is known for quality auto enhancements, and the Alpine HCE-C1100 rear view camera is the perfect example of their craftsmanship. Between the bright whites and dark blacks of the HDR camera, the color CMOS sensor, and adjustments to exposure and white balance, the rear view camera easily fine-tunes itself to fit your environment. Whether you're driving at night, in bright sunlight or somewhere in between, the Alpine HCE-C1100 rear view camera delivers a visual feed that's easy to see. You'll be extra safe, especially when you pair your cam with a good car video screen that makes checking your rear view Alpine HCE-C1100 camera instinctual.
Replace or Upgrade
Whether you're replacing your existing camera or adding an aftermarket model to your vehicle for the first time, the Alpine HCE-C1100 can easily be fitted to match your vehicle's system. Go for a complete upgrade with other safety features to make every road trip and drive to the corner safer with car electronics like dash cams, radar detectors, GPS navigation and more here at Abt. Speak to one of our specialists or make an appointment to bring your car in at 800-860-3577 or read up before you make your final decision with our Learn Center's car electronics buying guides.
Features
General
High Dynamic Range (HDR) Rear View Image
RCA Video Signal (NTSC) Output
Vehicle Reverse Signal Synchronization
Camera
Mirror Image Output
Color CMOS Image Sensor
Automatic Exposure Adjustment
Automatic White Balance Adjustment
Internal Synchronization
Specifications
General
Power Requirement: DC 9V to DC 15.6V
Ground Type: Negative Ground
Power Consumption: 1.2W (12V)
Operating Temperature (Box Unit): -30°C - +70°C
Camera
Output Image: Mirror Image, Composite Video NTSC, Aspect Ratio 4:3
Output Drive Capacity: 75 Ohms (1Vp-p)
Image Sensor: 1/3.7 inch CMOS image sensor
Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
Lens Focal Length: f=1.34mm
Lens Brightness: F=1:2.0
Angle of Field: Horizontal = 131°, Vertical = 103°
S/N Ratio: 40.5 dB or more
Resolution (Horizontal. Center Area): 330 TV Lines
Operating Temperature: -30°C - +70°C
Illumination Range: Approximately 1.5 to 100klx
Approximate Dimensions
Camera (Excluding Projection On The Rear): 0.93" x 0.93" x 0.94"
Camera Cable Length: 0.5 Meter (1.64 Feet)
Camera Extension Cable Length: 7 Meter (23 Feet)
Reverse/ACC/Video/GND Cable Length: 3 Meter (9.9 Feet)
Approximate Weight
Shipping: 2 lbs
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
Approximate Weight
Package Weight (lbs)
2
Approximate Dimensions
Package Size HxWxL (in)
2 x 7 x 10
General
Color
Black
