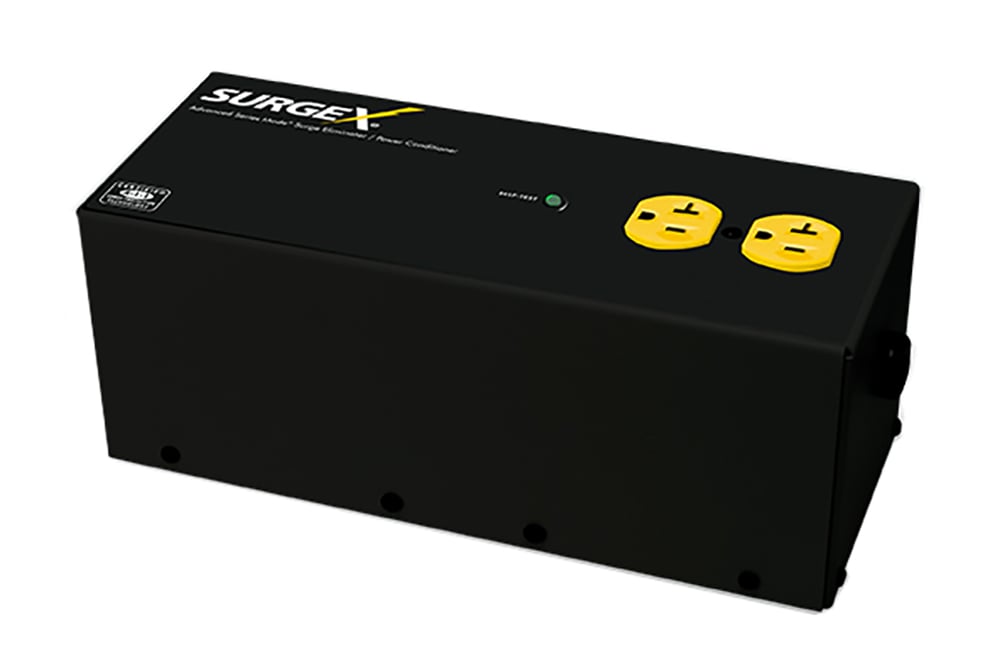

SurgeX Standalone Surge Eliminator - SA-20

Product Details
SurgeX Standalone Surge Eliminator - SA20
The SurgeX Standalone lineup protects mission-critical equipment in environments outside of a rack. Their compact design easily fits along, behind, or near equipment, takes up minimal space, and are perfect for AV, surveillance, and monitoring systems.
Featuring Advanced Series Mode technology and Impedance Tolerant EMI/RFI filtration, they provide patented surge elimination and conditioning for equipment that relies on peak AV performance. Unlike common protection solutions, the Standalone’s patented technology is comprised of non-sacrificial components that never degrade or fail, guaranteeing equipment stays protected. They eliminate surge energy up to 6,000 Volts without producing harmful ground contamination or common mode disturbances that can cause hissing sounds and pixelation on AV systems to ensure pristine sound and video.
Available in four configurations, the Standalone products safeguard connected equipment from harmful surges, spikes and electrical transients that can cause malfunction, downtime and unnecessary expenses.
Features
Compact design
Non-sacrificial components
2 and 10 receptacle configurations
9' grounded 3-wire cord
IP enabled (SA-20-AR)
Magnetic shielding steel enclosure
Specifications
Load Rating: 20A (x4)
Voltage Rating: 120V
Power Requirement (no load): 4 W
Surge Let-through Voltage (6000 Volt Surge): 0 Volts
Maximum Applied Surge Voltage: 6000 Volts *
Maximum Applied Surge Current: Unlimited (due to current limiting) *
Maximum Applied Surge Energy: Unlimited (due to current limiting) *
Endurance (C62.41-1991 category B3 pulses): 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
EMI/RFI Filter
Normal mode (50 ohm load): > 20 dB, 38 kHz – 50 MHz > 30 dB, 160 kHz – 50 MHz 25 dB @ 100 kHz; 39 dB @ 300 kHz; 60 dB @ 3 MHz; 44 dB @ 30 MHz
Common Mode ( 50 ohm load): > 10 dB, 280 kHz – 50 MHz > 20 dB, 1.7 MHz – 50 MHz > 30 dB, 9 MHz – 27 MHz 11 dB @ 300 kHz; 19 dB @ 1 MHz; 26 dB @ 5 MHz; 34 dB @ 20 MHz
Under-Voltage Auto Shutdown: No
Over-Voltage Auto Shutdown: No
Over-Current Auto Shutdown: Circuit Breaker
Over-Temperature Auto Shutdown: None
Measurement Accuracy
Voltage: NA
Current: NA
Power: NA
Energy: NA
Temperature: NA
Network Port: No
Serial Port: None
Temperature Sensor Input: None
Auxiliary Relay Outputs: No
Contact Closure Input: No
Temperature Range: 5C to 35C
Humidity Range: 5% to 95% R.H. Non-condensing
Agency Listings: Conforms to UL Stds 1283 & 1449 Certified to CSA Std C22.2 No. 8
* 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41 ** Specifications subject to change without notice
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Number of Outlets
2
USB Ports
No
Ethernet
No
Voltage Protection Rating
120V
Under-Voltage Shutoff
No Auto
Over-Voltage Shutoff
No Auto
Warranty Information
Parts Warranty
Lifetime Limited
Labor Warranty
Lifetime Limited
Approximate Weight
Unit Weight (lbs.)
8.5
Package Weight (lbs)
9
Approximate Dimensions
Height (in)
4
Width (in)
10.2
Depth (in)
4.2
Package Size HxWxL (in)
8 x 7 x 14
