Peerless-AV TV Wall Mount - SmartMount Articulating Wall Arm For 32-Inch - 50-Inch Displays - SA764PU

Product Details
Peerless-AV SA746PU TV Wall Mount - SmartMount Articulating Wall Arm For 32-Inch - 50-Inch Displays

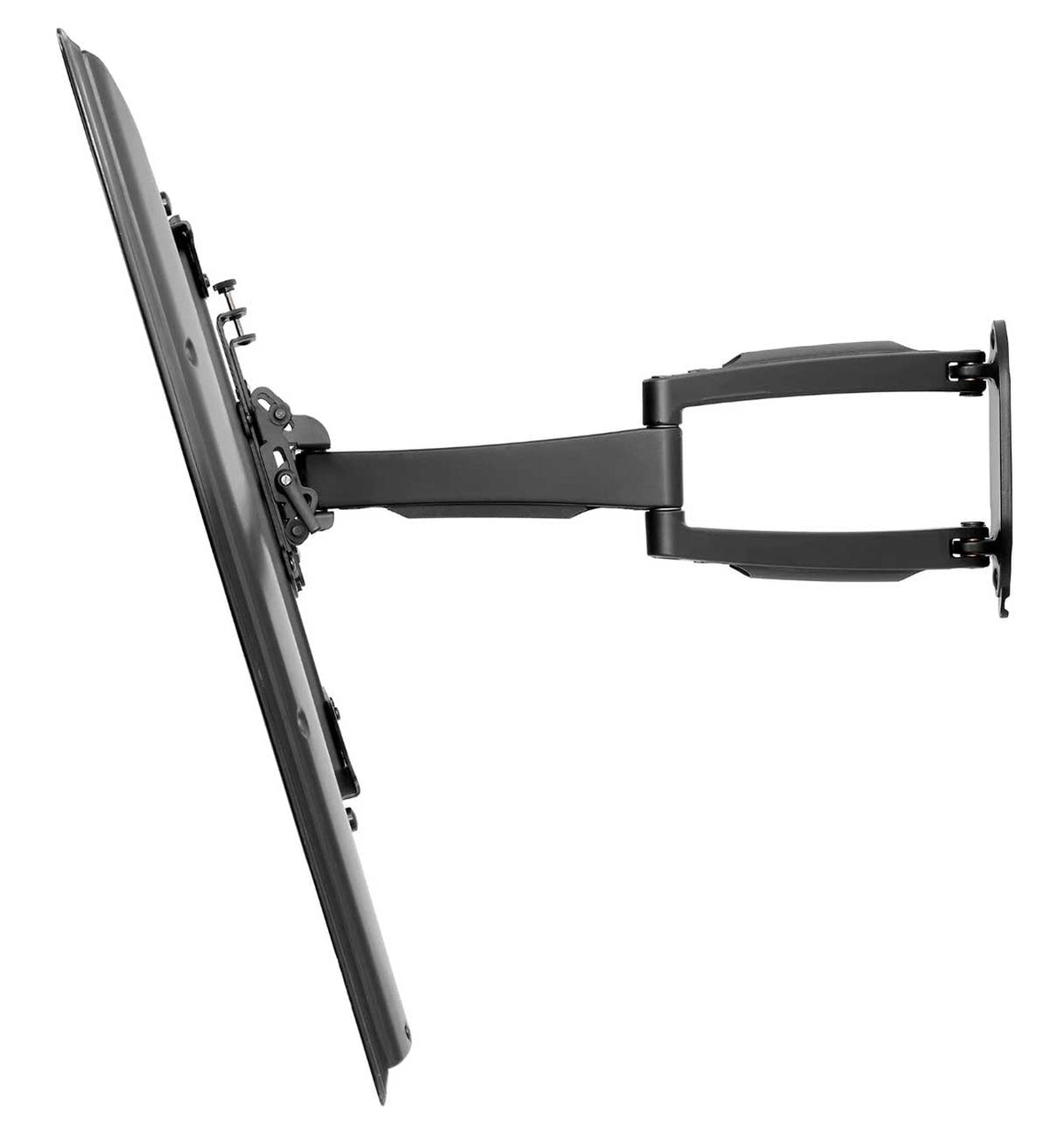

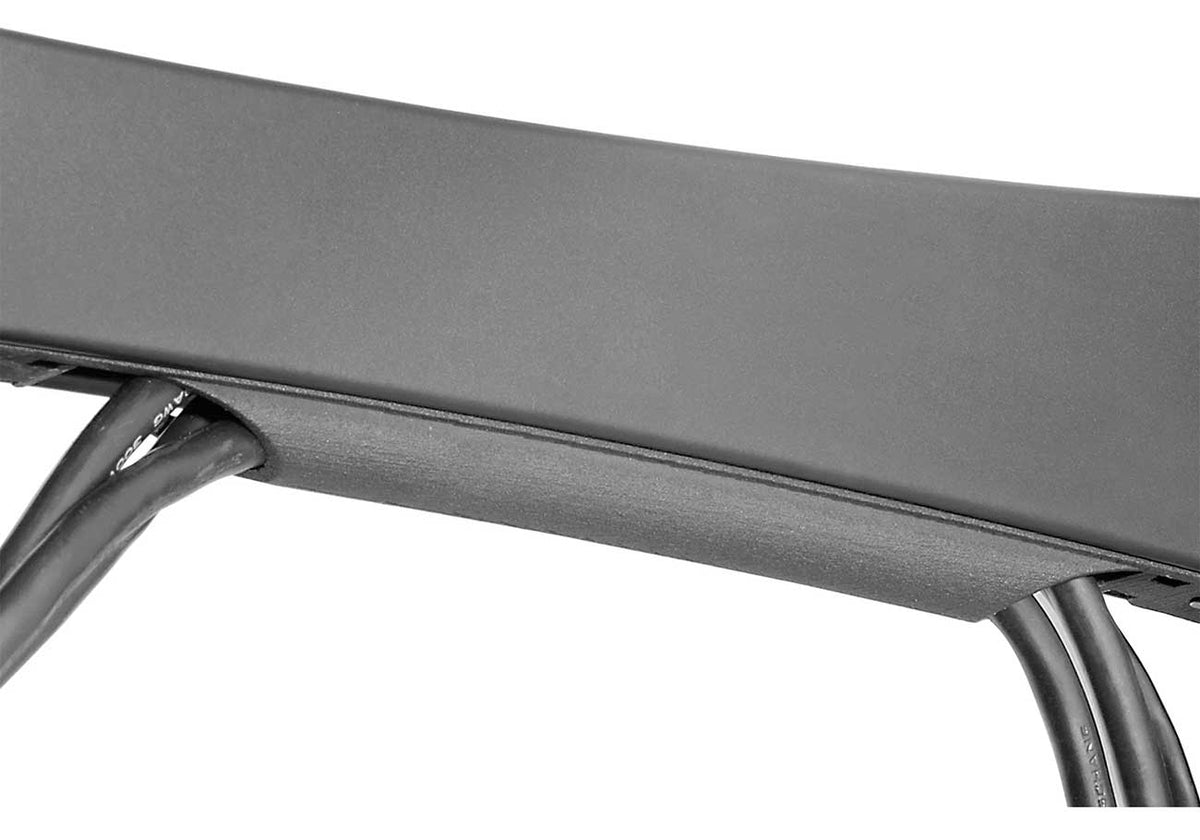

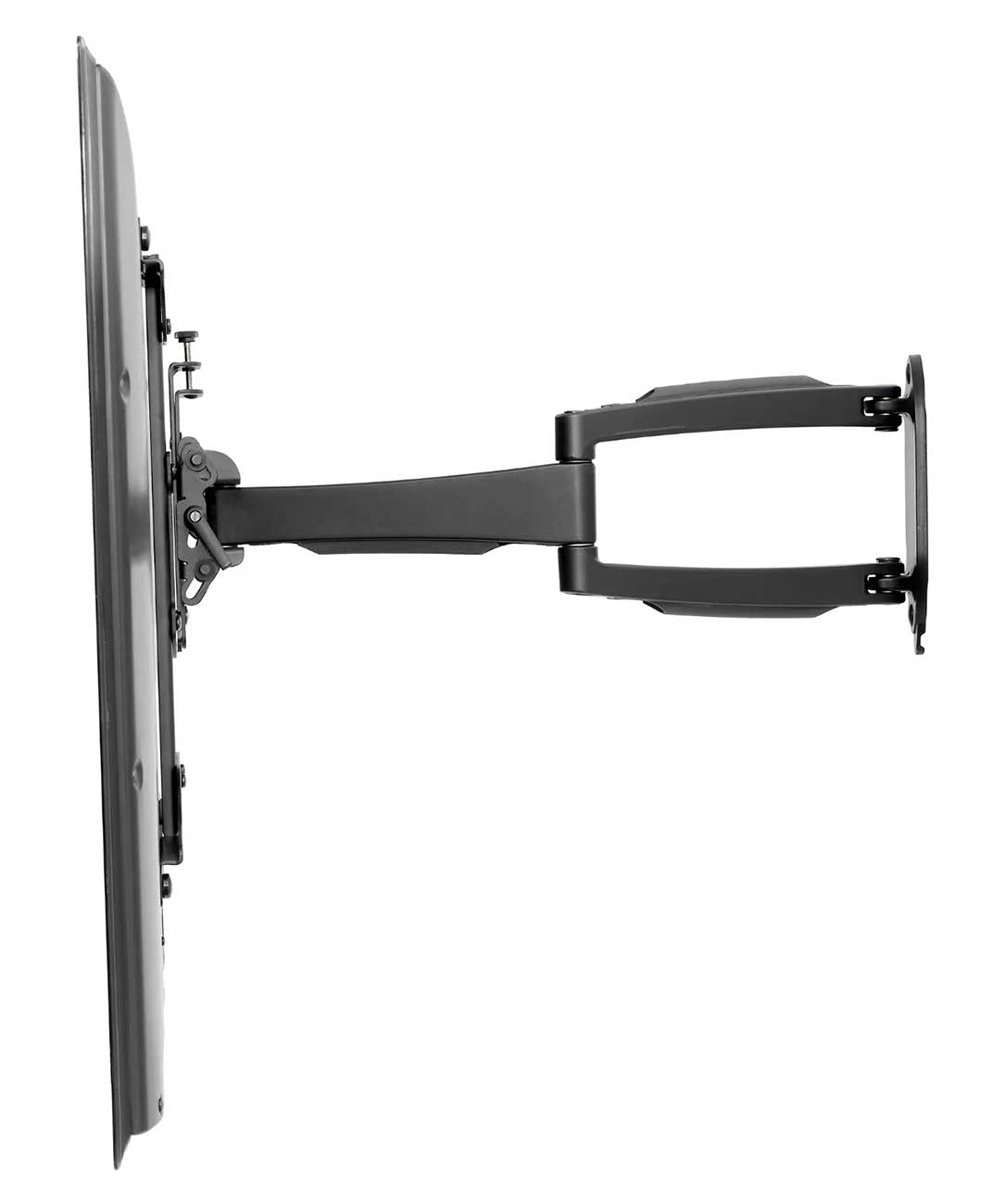

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA746PU, extend the display up to 22.22" (564mm) or fully-retract it to just 3.46" (88mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Features
Design is UL listed and tested to four times stated load capacity
Includes all necessary wall and display attachment hardware
Landscape or portrait mounting options increases display versatility
Universal mount fits displays with mounting patterns 200 x 100 to 400 x 400mm
Quick and easy, Hook-and-Hang™ one-person installation

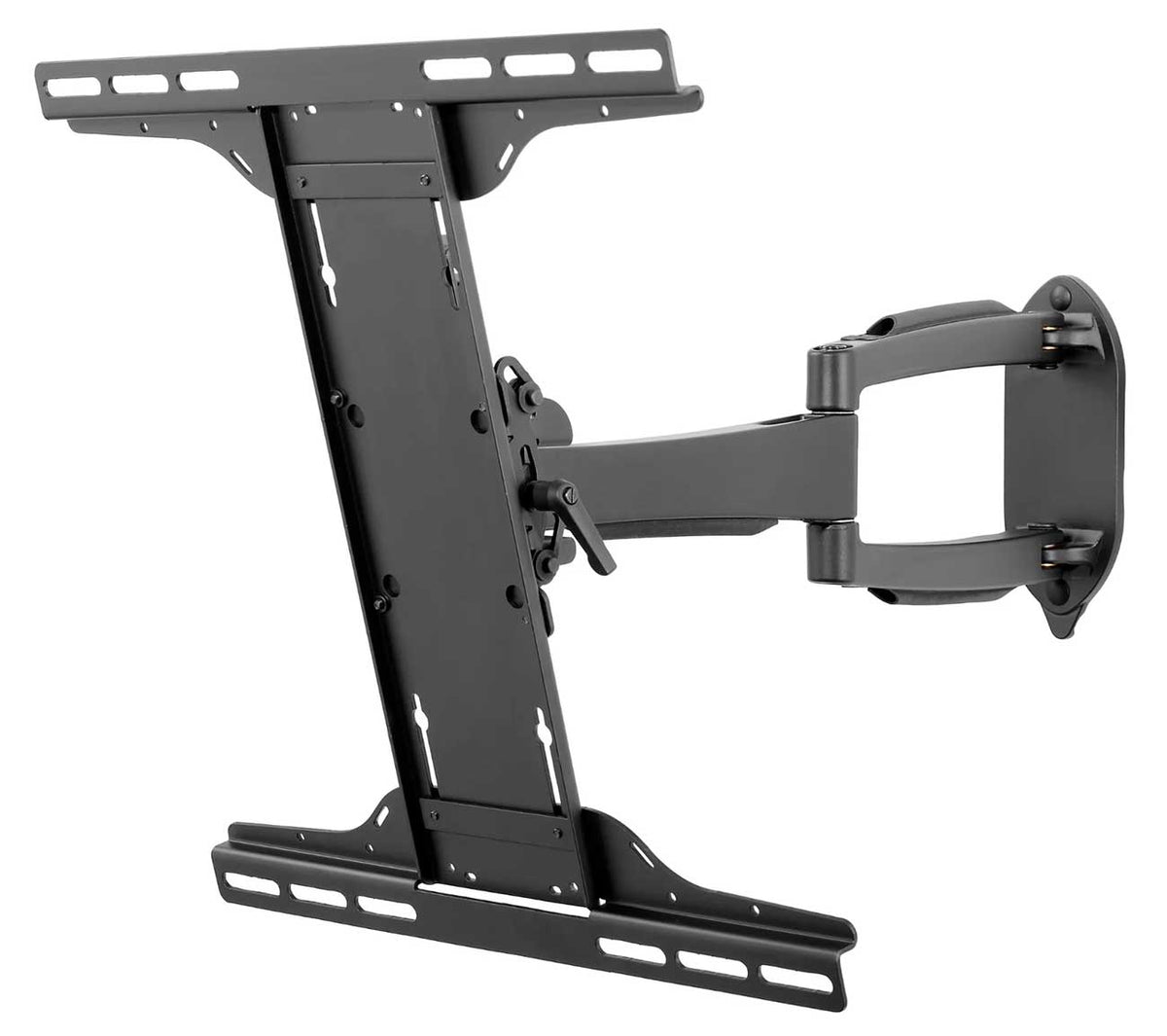

The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display
Easy leveling ±5° after display installation
±90° of pivot allows for perfect display positioning

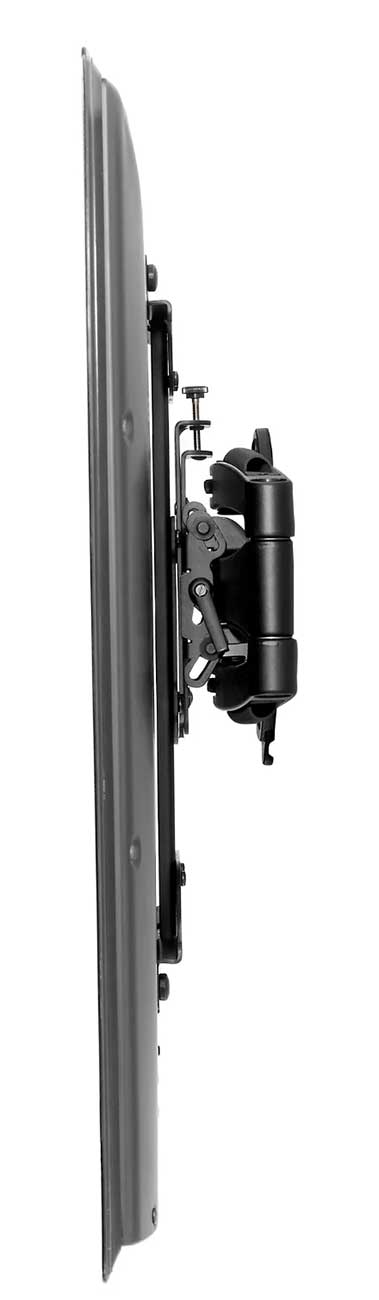

Retracts to hold display just 3.46" (88mm) from the wall
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Full Motion
Maximum TV Size Compatibility (in)
50
Minimum TV Size Compatibility (in)
32
Assembly Required
Yes
Compatibility
32" - 50" Displays
Outdoor
No
Maximum Extension (in)
20.92
Maximum TV Weight (lbs.)
80
Max Mounting Pattern
432x408
Mounting Pattern
400x400
Mounting Surface
Solid / Drywall / Stud Surface
Product Finish
Black
Roll Adjustment (Degrees)
5° / -5°
Approximate Weight
Package Weight (lbs)
14
Approximate Dimensions
Height (in)
12.5
Width (in)
20.5
Depth (in)
5.13
Package Size HxWxL (in)
6 x 13 x 20
