Crimson Ceiling Mount Box - C55V

Product Details

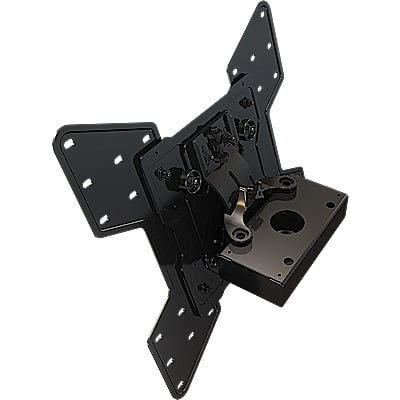

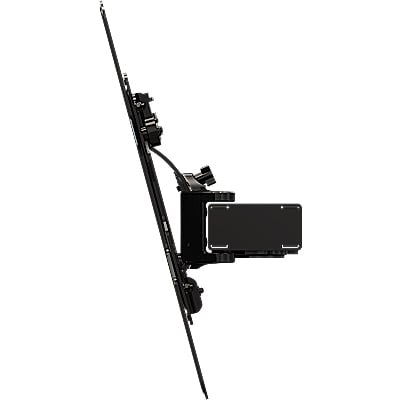

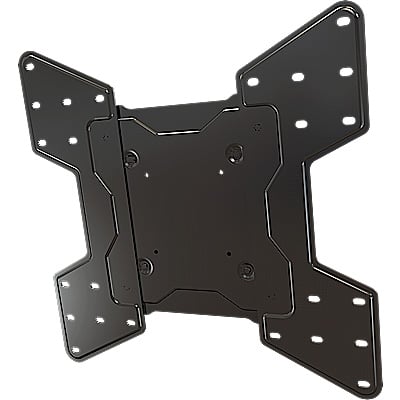

Crimson Ceiling Mount Box, Model C55V
Attaches to standard 1.5" threaded extension columns. Can be used as retrofit
on existing columns or combine with Crimson E-series fixed extensions or EA-series
adjustable extensions and CA ceiling adapters to complete the solution. Continuous
tilt of 15° forward and 5° back with 360° rotation. Makes a secure screen installation
quick and easy, simply hang the screen and turn the pre-assembled securing screw
to lock the universal adapter in place. Compatible with all 1.5" NPT threaded
pipe.
Features
VESA compatible
Fast and easy installation
Up to 15° of continuous tilt and 360° rotation
Pre-tensioned tilt mechanism for smooth adjustment
Post installation screen leveling without use of tools
Mounts to any 1.5" NPT threaded pipe
Pre-sorted hardware pack for easy installation
Specifications
TV size range: 32” – 55”+
Weight capacity: 100lb (45kg)
Max mounting pattern: 400x400mm
VESA mounting patterns: 100x100mm, 200x100mm, 200x200mm, 300x200mm,
300x300mm, 400x200mm, 400x300mm, 400x400mm
Tilt: +15°/-5°
Roll (side to side): 6° tool less screen leveling
Rotation (yaw): 360°
1.5” NTP thread compatible: Yes
Mounting interface: 1.5” NTP thread compatible
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Approximate Weight
Unit: 15 lbs
Shipping: 28 lbs
Warranty Information
Manufacturer Warranty (authorized online retailer): 10 Years
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
Approximate Weight
Package Weight (lbs)
18
Approximate Dimensions
Package Size HxWxL (in)
10 x 12 x 21
General
Color
Black
