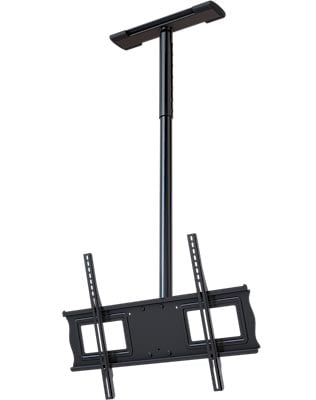

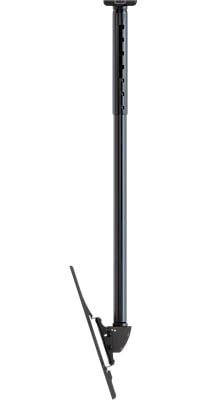

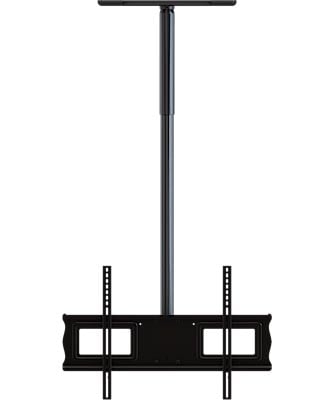

Crimson Ceiling Installation Kit With 24"- 36" Adjustable Drop For 37" - 75" Flat Panel TV - C63-36A

Product Details
Crimson Ceiling Installation Kit With 24"- 36" Adjustable Drop For
37" - 75" Flat Panel TV, Model C63-36A
Includes universal screen adapter, 24" to 36" adjustable extension column (EA23)
and structural ceiling adapter (CA2) for mounting on 16" joist centers. Continuous
tilt of 20° forward and 360° rotation.
Features
Universal design
VESA compatible
Adjustable drop length 24" to 36”
Fast and easy installation
Up to 20° of continuous tilt and 360° rotation
Pin-locking incremental tilt adjustment
Post installation screen leveling without use of tools
Through-column cable routing for an uncluttered look
Decorative covers to hide ceiling bolts for a finished look
Pre-sorted hardware pack for easy installation
Specifications
TV size range: 37” – 75”
Weight capacity: 150lb (68kg)
Max mounting pattern: 723x501mm
VESA mounting patterns: 75x75mm, 100x100mm, 200x100mm, 200x200mm,
300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
Tilt: +20°/-0°
Roll (side to side): 6° tool less screen leveling
Rotation (yaw): 360°
Drop length: 24" - 36”
1.5” NPT thread compatible: Yes
Mounting surface: wood joist, structural wood or structural concrete
(accessory required HE4)
Joist spacing: dual joist on 16” centers
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color: black
Approximate Weight
Unit: 25.6 lbs
Shipping: 30 lbs
Warranty Information
Manufacturer Warranty (authorized online retailer): 1 Year Parts and
Labor
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
Approximate Weight
Package Weight (lbs)
29
Approximate Dimensions
Package Size HxWxL (in)
10 x 11 x 40
General
Color
Black
