AMX FG2106-03 NX-3200 NetLinx NX Integrated Controller

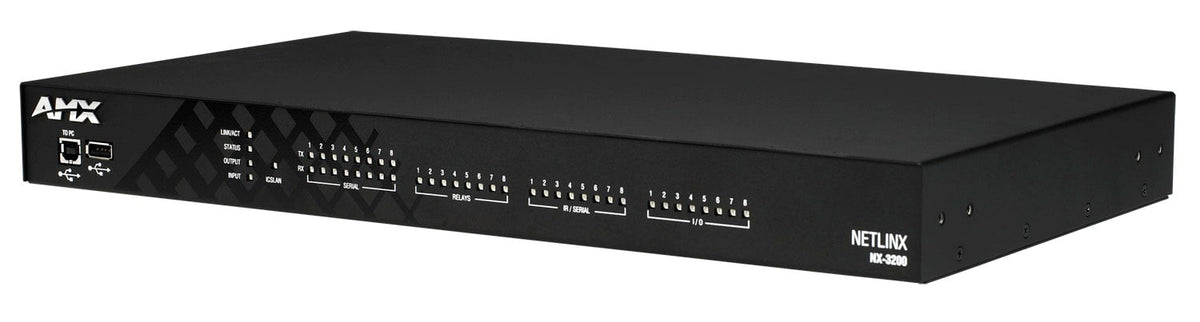

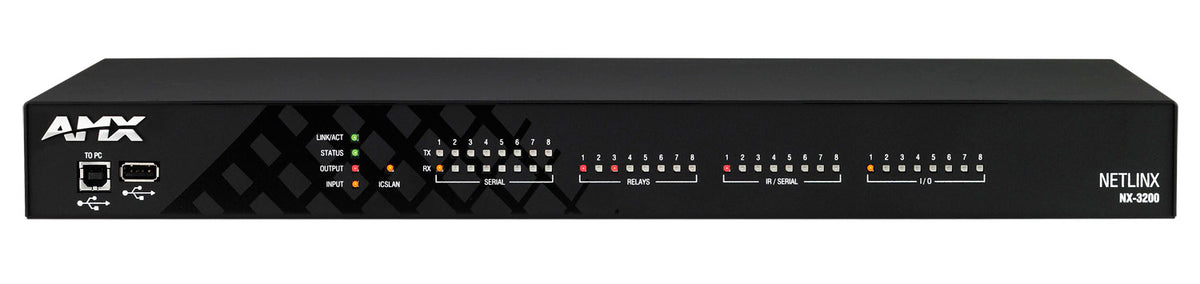

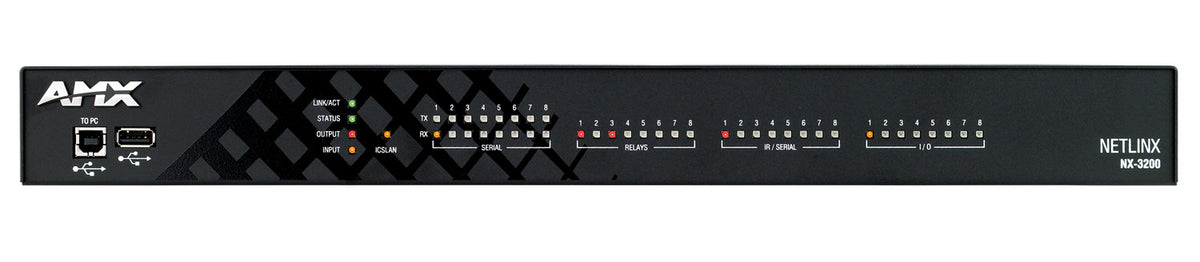

The AMX NX-3200 NetLinx NX Integrated Controller is built for demanding AV and building control applications where reliability, scalability and security matter. Designed as a programmable network appliance, it manages a wide range of electronic equipment using multiple analog and digital formats, making it an excellent fit for lecture halls, board rooms, media rooms and advanced integrated homes. With its black matte metal enclosure and rack-mountable 1RU design, the NX-3200 brings a clean, professional look to any installation.
High-Performance Control for Complex Systems
Powered by an ultra-fast 1600 MIPS processor and 512 MB onboard RAM, the AMX NX-3200 delivers the speed and responsiveness needed for sophisticated control environments. Its larger port configuration adds more connectivity than the NX-2200, giving integrators more flexibility when connecting AV conferencing systems, projectors, displays, lighting, thermostats and other equipment. The controller also supports a flexible programming platform with RPM, NetLinx and Java, helping support both current projects and future expansion.
Flexible Connectivity and Security
The NX-3200 is equipped with dual NIC support, including a LAN port for the master and an isolated ICSLAN connection for AMX or third-party AV equipment. This separation helps deliver strong network security while supporting modern networking standards such as IPv6 and wired 802.1X. With 8 digital I/O ports, 8 relay ports, multiple serial ports, IR/serial output and AxLink interface support, this NetLinx controller is ready for a broad range of automation tasks. It also includes USB file import and export support for easy backup, restore and firmware updates.
Built for 24/7/365 Operation
Created for dependable performance, the AMX NX-3200 is engineered for continuous use with hardware and software built for 24/7/365 operation. Enhanced diagnostics on serial and IR ports help identify wiring issues quickly, while full line compatibility makes it easier to work within existing NetLinx ecosystems. If you need a scalable integrated controller for advanced AV control, power management, HVAC, lighting and more, the NX-3200 is a powerful solution for professional installations.
Key Features
Larger Port Configuration – 8/8/8/8 (Serial, Relay, IR, Digital I/O), versus 4/4/4/4 for the NX-2200
Dual NIC – The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
IPv6 and wired 802.1x – Supports modern networking standards for internet protocol IPv6 and port-based Network Access Control utilizing X.509 certificates for access to protected networks
High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
File Import / Export From USB Drive – Backup and restore configuration and program data and update firmware from a standard USB flash drive
Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
Features
Ultra-Fast 1600 MIPS processor
512 MB Onboard RAM
1 M Non-Volatile Memory
8 GB SDHC FLASH Memory
1 RU
2 AXLink Interface
1 10/100 LAN Interface
1 10/100 ICSLan Interface
8 Digital I/O Ports
2 RS232/422/485 Ports
6 RS232-Only Ports
8 IR/Serial Output Ports
8 Relay Ports
Specifications
Active Power Requirements
Voltage, DC (Typical): 12 VDC
DC Current Draw: 400 mA @ 12 VDC
Voltage DC Range: 9 - 18 VDC
Power Connector: 3.5mm Phoenix with retaining screws
Power Consumption
Active Power Consumption: 6.6 W
Environmental
Temperature (Operating): 32° F to 122° F (0° C to 50° C)
Temperature (Storage): 14° F to 140° F (-10° C to 60°C)
Humidity (Operating): 5% to 85% RH
Heat Dissipation (Typical): 22.5 BTU/hr
Onboard Master
Processor: 1600 MIPS
Program Port: (1) USB Standard B
Configuration Dip Switch: 4-position
Status Indicator: Status LED (green) blinks to indicate that the system is programmed and communicating properly
Input Indicator: Input LED (yellow) blinks to indicate that the Controller is receiving data
Output Indicator: Output LED (red) blinks to indicate that the Controller is transmitting data
ID Pushbutton: Black ID pushbutton for setting IP mode and reverting to default configuration and firmware
USB Host Port: (2) USB Standard A, one on front and one on back, USB Host port supports Solid State drive for upgrading firmware, loading code files, copying configuration data and remote storage
Memory
NVRAM: 1 MB
Memory Card: 8 GB SD
DDRAM: 512 MB
Note: Supports external USB Solid State Drives
Ethernet
Connection: (1) RJ-45
Description: 10/100 Port RJ-45 connector provides TCP/IP communication. Auto MDI/MDI-X enabled. Supports IPv4 and IPv6 networks. Supports HTTP, HTTPS, Telnet, FTP
Link/Act Indicator: Link/Activity LED (green) blinks when receiving Ethernet data packets, one on Ethernet RJ-45 connector and one on the front panel
Speed Indicator: Speed LED (yellow) lights On when the connection speed is 100 Mbps Ethernet connection and turns OFF when the speed is 10 Mbps
ICSLan
ICSLan Connection: (1) RJ-45, 10/100 Port RJ-45 connector. Auto MDI/MDI-X enabled. Supports IPv4 and IPv6 networks. Supports HTTP, HTTPS, Telnet, FTP
ICSLan Link/Active Indicator: ICSLan LED (green) blinks when receiving Ethernet data packets, one on Ethernet RJ-45 connector and one on the front panel
ICSLan Speed Indicator: Speed LED (yellow) lights On when the connection speed is 100 Mbps Ethernet connection and turns OFF when the speed is 10 Mbps

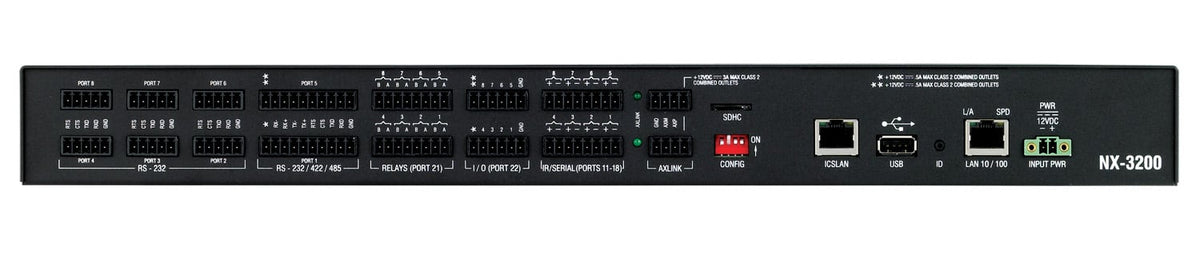

Control Ports & Indicators
AxLink Port: (2) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator: (2) AxLink LED (green) indicates the state of the AxLink port
RS-232/422/485 Port
(2) 10-position 3.5mm Screw Terminal
NetLinx Ports 1 and 5
XON/XOFF (transmit on / transmit off)
CTS/RTS (clear to send/ready to send)
300 - 115,200 baud
RS-232 Port
(6) 5-position 3.5mm Screw Terminal
NetLinx Ports 2-4 and 6-8
XON/XOFF (transmit on / transmit off)
CTS/RTS (clear to send/ready to send)
300 - 115,200 baud
Serial Indicator: (8) sets of LEDs (red/yellow) indicate when serial Ports 1-8 are transmitting and receiving data
IR/Serial
(8) 2-position 3.5mm Screw Terminal
8 IR Transmit / 1-way Serial ports
NetLinx Ports 11-18
Support high-frequency carriers up to 1.142 MHz
8 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators: (2) LEDs (red) indicate when each of the IR/Serial ports (11-18) are transmitting control data
I/O Channels
(8) One 10-position 3.5mm Screw Terminal
8-channel binary I/O port for contact closure with each input being capable of voltage sensing
NetLinx Port 22
Channels 1-8
I/O Indicator: (8) LEDs (yellow) indicate each of the I/O channels (1-8) are active
Relays
(8) Two 8-position 3.5 mm Screw Terminal, (8) single-pole, single-throw relays
NetLinx Port 21
Channels 1-8
Each relay can switch up to 24 VDC or 28 VAC @ 1 A
Each relay is independently controlled
Relay Indicators: (8) LEDs (red) indicate when each of the relay channels (1-8) are active (closed)
General
Enclosure: Metal with black matte finish
Regulatory Compliance
FCC CFR Title 47 Part 15
CE EN 55022
CE EN 55024
CE EN 60950-1
IEC 60950-1
UL 60950-1
C-Tick CISPR 22
IC CISPR 22
VCCI CISPR 22
RoHS
WEEE
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
In the Box
1 x 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-0002-SA), 1 x 4-pin 3.5 mm mini-Phoenix (female) AxLink connector (41-5047), 2 x 10-pin 3.5mm mini-Phoenix female RS232/422/485 connectors (41-5107), 6 x 5-pin 3.5mm mini-Phoenix female RS232 connectors (41-0336), 2 x 6-pin 3.5 mm mini-Phoenix female I/O connector (41-5063), 2 x 8-pin 3.5 mm mini-Phoenix female Relay connector (41-5083), 2 x CC-NIRC IR Emitters, 1 x Removable Rack Ears
Approximate Weight
Package Weight (lbs)
8
Approximate Dimensions
Package Size HxWxL (in)
5 x 13 x 22
