URC Complete Control Base Station - MRF-350

Product Details

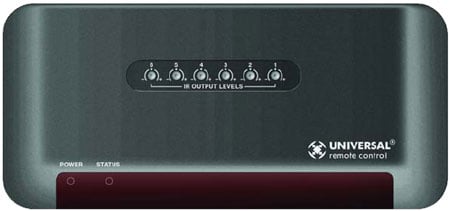

URC Automation Complete Control MRF350 Base Station
Improved spurious adjacent signal rejection. The MRF-350 receives Narrow Band RF (radio frequency) signals via the RFX-250 RF Sensor (antenna module). The RFX-250 displays RF interference via a bright red LED which flickers when interference is present. Simply relocate the RFX-250 out of the interference area to resolve the problem.
Features
"No More Pointing"
RF Addressable
IR Routing
Expand operating range up to 100 feet
Compatible remotes: MX-3000, TX-1000, MXW-920, MX-990, MX-950, MX-900, MX-890, MX-790, and MX-780 only
Compatible RF Sensors (antennas): RFX-250 only
Expand range by adding RFX-250 RF Sensors in remote areas
The MRF-350 can power up to three RFX-250 RF Sensors connected in parallel to the RF Input connector.
Variable IR output matches rear panel inputs
The MRF-350 is equipped with adjustable IR line outputs. Each output can be individually matched to rear panel IR inputs on any component that is designed to be operated by a standard IR repeater. The outputs utilize a 3.5 mm jack.
IR Input for multi-zone loop through, keypads or IR repeater systems
The MRF-350's rear panel IR input will relay IR data from IR repeaters or multi-zone keypads to all IR line outputs (does not support IR routing). The 5V, 100mA output will power some keypads directly.
Control six identical components or zones — Up to fifteen MRF-350s in the same installation
The MRF-350 has six "addressable" IR Line Outputs. For example, you can control up to six identical TVs with one MRF-350 or route volume commands for a specific zone to a particular zone IR input on a multi-zone pre-amp. If you have more than six identical components or zones, up to 15 MRF-350s can be separately installed to control them—thereby allowing up to 90 identical components or zones in one house. The MRF-350 is compatible with the MX-3000, TX-1000, MXW-920, MX-990, MX-950, MX-900, MX-890, and MX-780 (only). Each can be programmed to specifically control components in a particular room by installing a base station at each location. In operation, it's simple: when you select a device located in the Den, the remote only send commands to the Den. When you select a device located in the Family Room, the remote only sends commands to it.
Footnote
This product is compatible with MX-3000, TX-1000, MXW-920, MX-990, MX-950, MX-900, MX-890, and MX-780 remote controls only. Not compatible with RFX-150
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Base Station
Compatibility
MX-3000, TX-1000, MXW-920, MX-990, MX-950, MX-900, MX-890, MX-780
RF
418MHz
IR Flasher
3.5mm Mono Mini Jack
In the Box
AC Adapter
Range
Up to 100 feet RF
Warranty Information
Parts Warranty
1 Year
Labor Warranty
1 Year
Approximate Weight
Package Weight (lbs)
1
Approximate Dimensions
Height (in)
1.38
Width (in)
8.5
Depth (in)
3.88
Package Size HxWxL (in)
4 x 7 x 11
