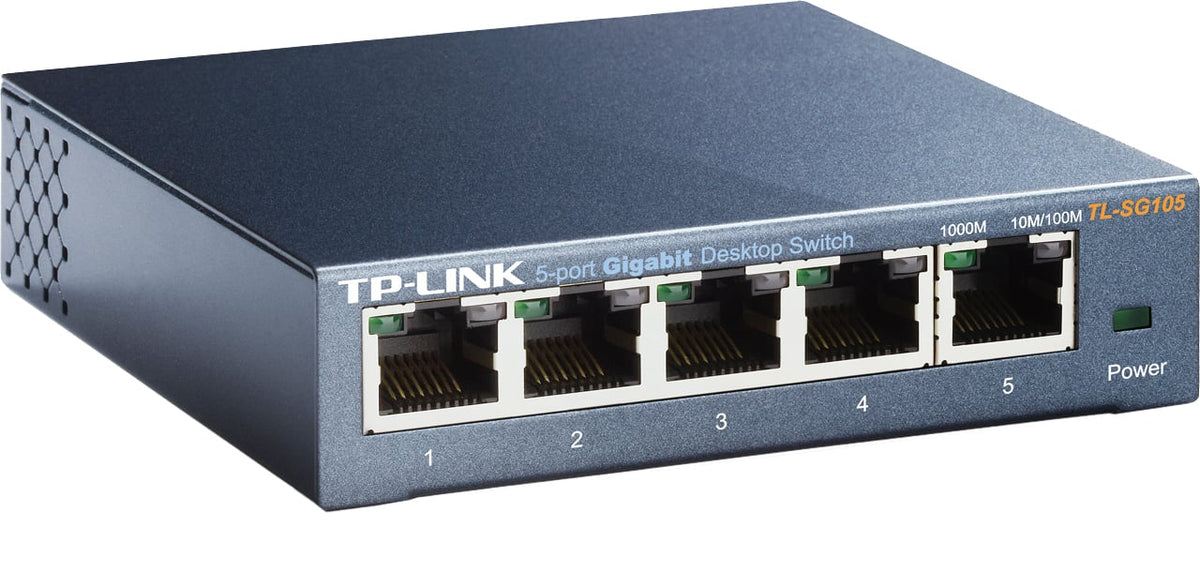

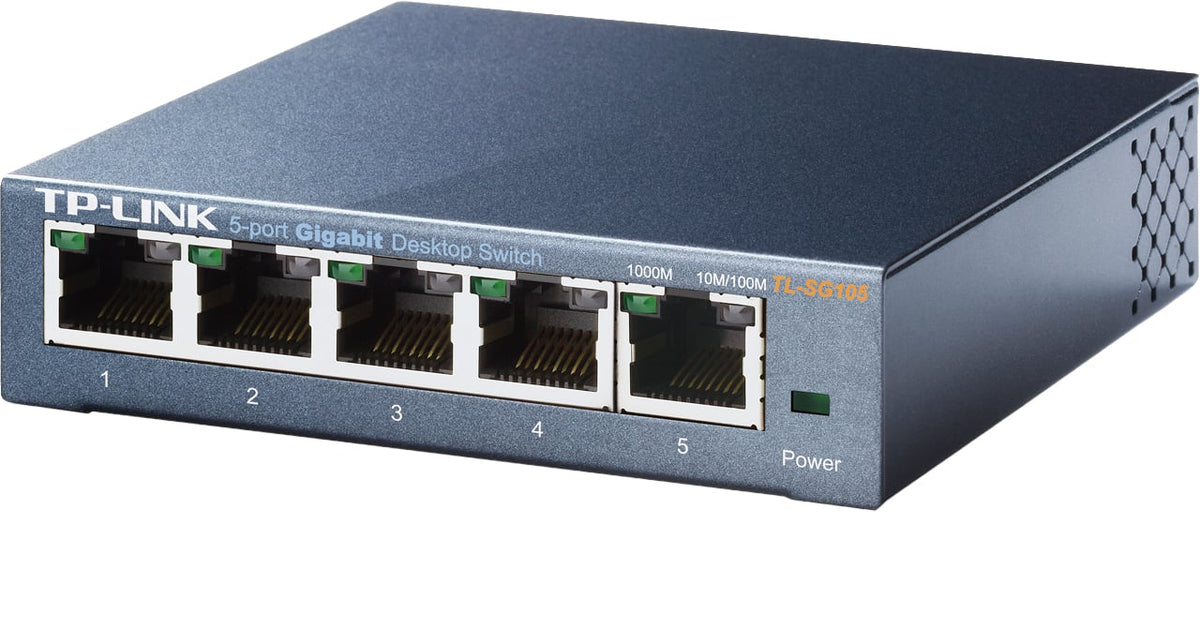

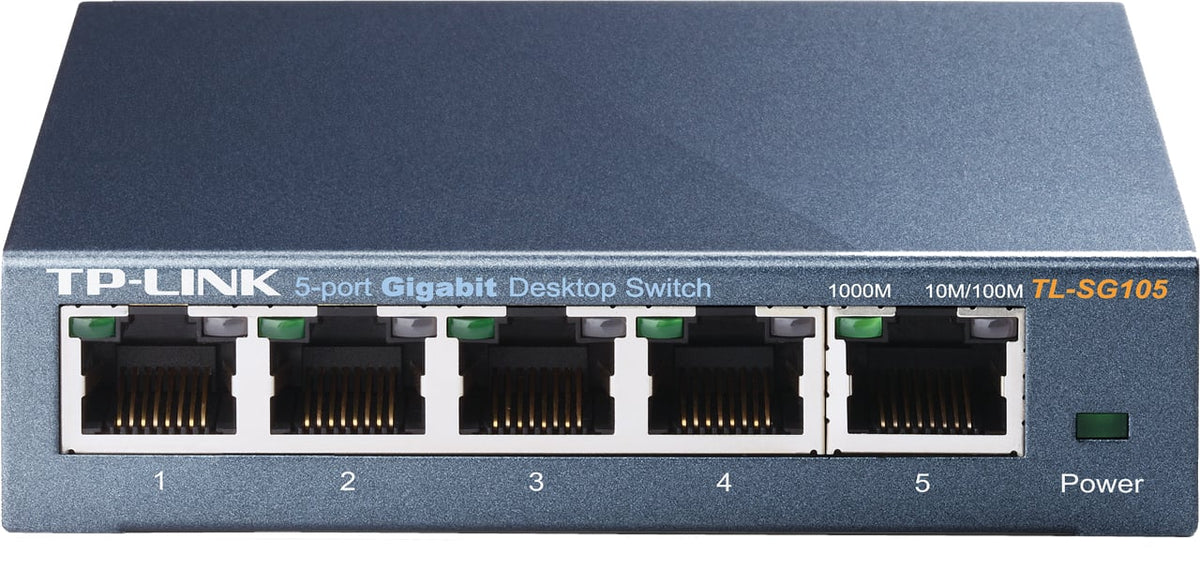

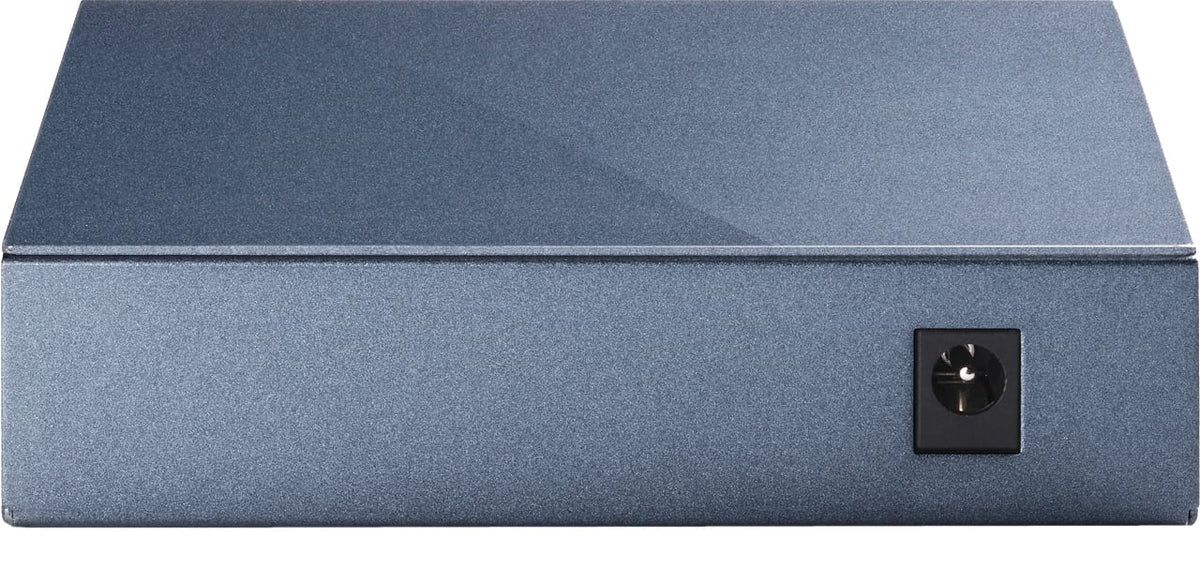

TP-Link 5-Port 10/100/1000Mbps Desktop Switch - TL-SG105

Product Details
TP-Link 5-Port 10/100/1000Mbps Desktop Switch, Model TL-SG105
What This Product Does
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to
make the transition to Gigabit Ethernet. Increase the speed of your network
server and backbone connections, or make Gigabit to the desktop a reality. Moreover,
TL-SG105 adopts lower power consumption design. With the innovative energy-efficient
technology, the TL-SG105 can save up to 65% of the power consumption, making
it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105 greatly expands your network
capacity, enabling instant large files transferring. So, power users in the
home, office, workgroup, or creative production environment can now move large,
bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia
files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This
new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest
innovative energy-efficient technologies that can greatly expand your network
capacity with much less power. It automatically adjusts power consumption according
to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional
switch will continue to consume considerable amounts of power. The TL-SG105
can automatically detect the link status of each port and reduce the power
consumption of ports that are idle, resulting in up to an 65% reduction in
power use.
Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation
over their length; this is not the case with most devices as they will use
the same amount of power across the cable regardless of the length.
Easy to Use
The auto features of this gigabit switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for
crossover cables. Auto-negotiation on each port senses the link speed of a network
device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility
and optimal performance.
Features
Innovative energy-efficient technology saves power up to 65%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure
for Half Duplex mode
Steel design, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) and IGMP snooping function
Non-blocking switching architecture that forwards and filters packets at
full wire-speed for maximum throughput
9K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps
and 1000Mbps hardware
Fanless design ensures quiet operation
Plug and Play design simplifies installation
Specifications
Hardware
Standards and Protocols
IEEE 802.3/802.3u/ 802.3ab/ 802.3x
CSMA/CD
Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
External Power Supply: 100-240VAC, 50/60Hz
Fan Quantity: Fanless
LED Indicator
System Power
Link, Speed and activity indicators per port built into each RJ-45 port
Power Consumption: Maximum: 2.46W (220V/50Hz)
Software
Advanced Features
Green Technology, saving power up to 65%
802.3X Flow Control, supports QoS (IEEE802.1P), IGMP Snooping function
Transfer Method: Store and Forward
Others
Certification: CE, FCC ,RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
User Guide
System Requirements
Microsoft® Windows®: 98SE, NT, 2000, XP, Vista or Windows 7
Mac®: OS
NetWare®
UNIX®
Linux.
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
Approximate Dimensions
Height: 1"
Depth: 3.9"
Width: 3.9"
Approximate Weight
Shipping: 2 lbs
Warranty Information
Manufacturer Warranty (authorized online retailer): 5 Years Limited
