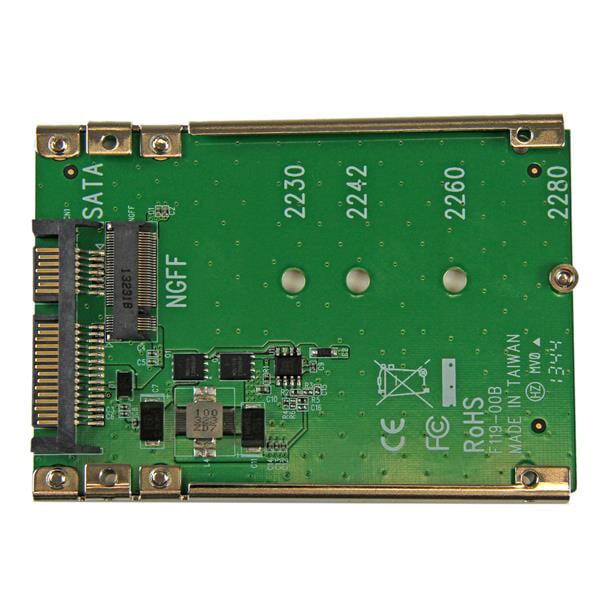

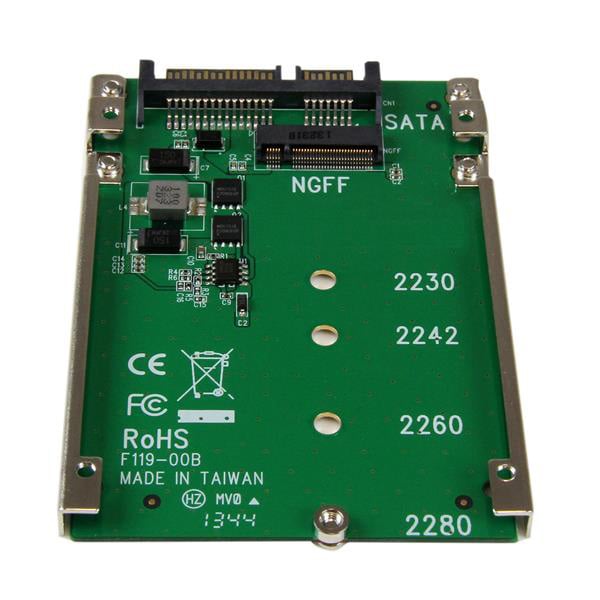

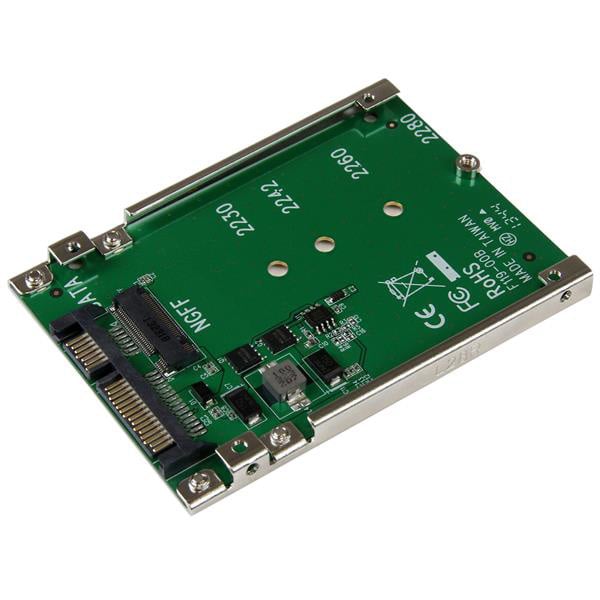

StarTech M.2 SSD to 2.5in SATA Adapter Converter - SAT32M225

Product Details
StarTech M.2 SSD to 2.5in SATA Adapter Converter - SAT32M225
Convert an M.2 SSD into a 7mm high 2.5in SATA 6Gbps Open Frame SSD
Vastly increase system performance by adding the speed of an M.2 SSD in any 2.5" SATA application, with the SAT32M225 M.2 SSD to SATA adapter.
Utilize the full potential of your SATA III controller, with an M.2 SSD reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. M.2 SSDs can also save you money by reducing your power consumption over regular platter drives.
Help protect the health of your drive with an open-frame design that maximizes heat dissipation.
The SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
Features
Open-frame steel mounting bracket
Supports 7mm or larger 2.5" SATA bays
Supports B key M.2 SSDs
Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
2.5in SATA form factor housing
Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Specifications
Hardware
Compatible Drive Types: M.2 (NGFF, B-Key)
Drive Installation: Fixed
Interface: SATA
Number of Drives: 1
Supported Drive Height(s): 2230, 2242, 2260, 2280
Performance
General Specifications: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Hot Swap Capability: No
Maximum Data Transfer Rate: 6 Gbps
Type and Rate: SATA III (6 Gbps)
Connector(s)
Drive Connectors: 1 - M.2 (NGFF, B-Key) Receptacle
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Software
OS Compatibility: OS independent; No software or drivers required
Environmental
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Included
1 - M.2 NGFF SSD to 2.5in SATA SSD Converter
1 - Mounting screw kit
1 - Instruction Manual
Approximate Dimensions
Height: 0.3"
Width: 1.3"
Length: 3.9"
Approximate Weight
Shipping: 0.23 lbs
Warranty Information
Manufacturer Warranty (authorized online retailer): 2 Years Limited
