Kanto Pro Series Full Motion Wall Mount For Flat Panel TVs 55" - 120" - PMX800

Product Details

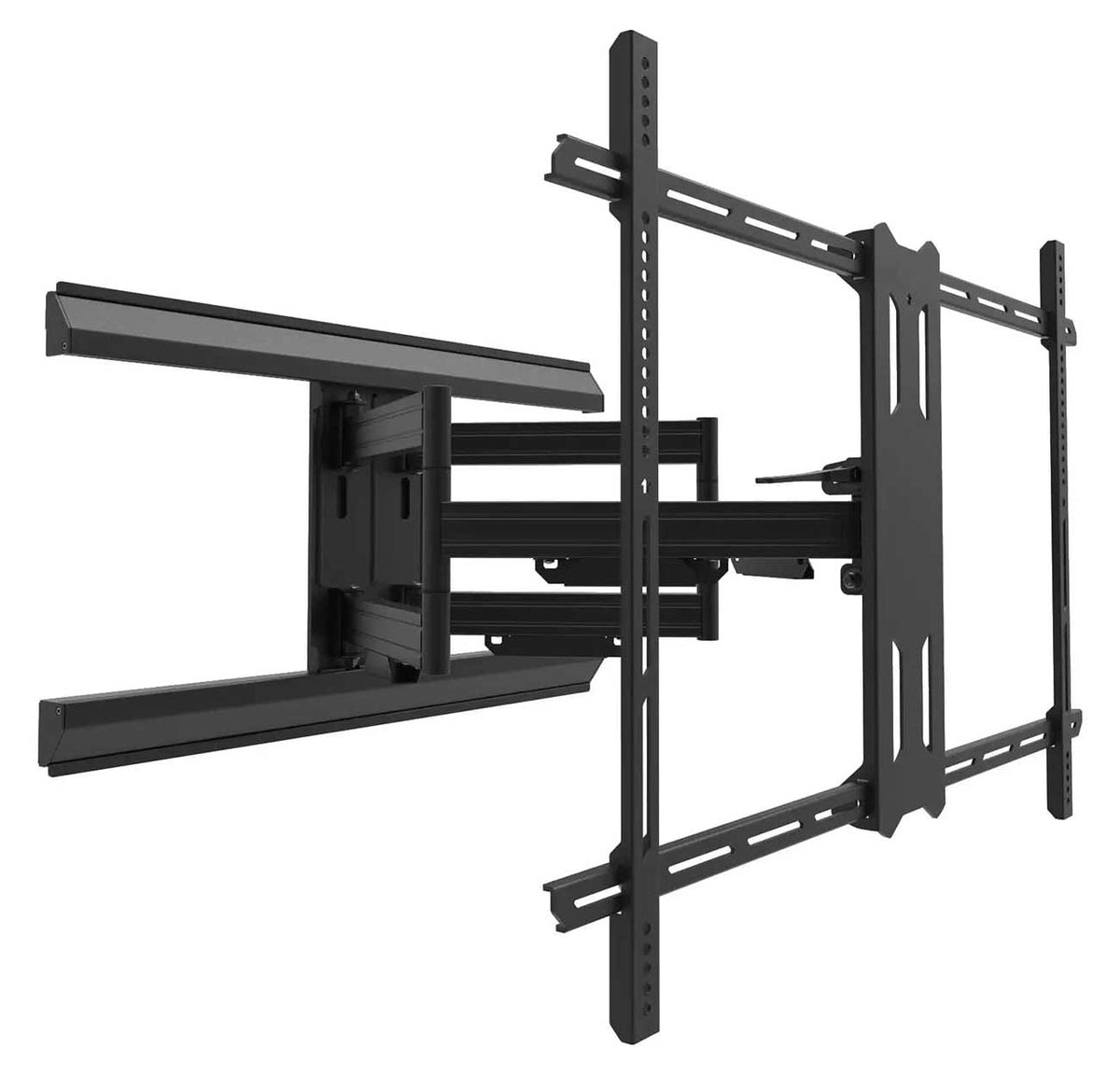

Kanto PMX800 Pro Series Full Motion Wall Mount For Flat Panel TVs 55" - 120"
Don’t let the size of your TV dictate where you put it. Capable of supporting panels up to 120”, PMX800 adjustable wall mount can be horizontally offset 11” in either direction to dial in the lateral placement of your display. An oversized 900×600 VESA interface improves compatibility with extra-large touch screens and provides flexibility for vertical positioning. With 31.3” of extension, this full motion wall mount gives you all the swivel needed to get the perfect viewing angle. Its low-profile design allows your TV to sit 2.6” from the wall when fully retracted and features all-metal cable management and lag bolt covers to stand the test of time. Toolless tilt rounds off PMX800’s extensive feature set allowing for on-the-fly adjustments.
Features
Supports Extra Large Displays
Whether you’re designing the ultimate home theatre, or installing interactive touch panels, PMX800’s 200 lb. weight capacity ensures compatibility with displays of any size.

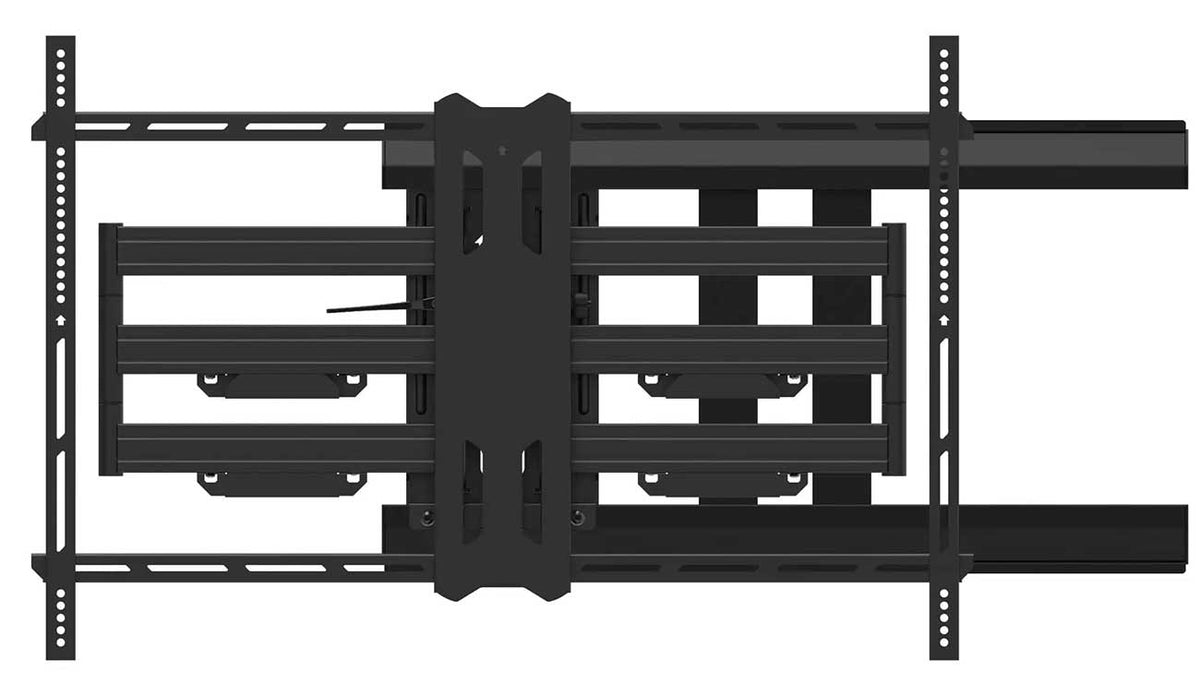

Horizontal Offset
Even if your studs are in a suboptimal position, you can still nail your TVs placement with 22 total inches of horizontal offset. Oversized TV brackets provide flexibility to achieve the perfect height.
Low Profile Design
The unique design of this articulating wall mount allows your TV to sit 2.6 inches from the wall when fully pushed in.
Impressive Extension
Easily reach over fireplaces or out of recessed locations with 31.3” (79.5 cm) of extension.

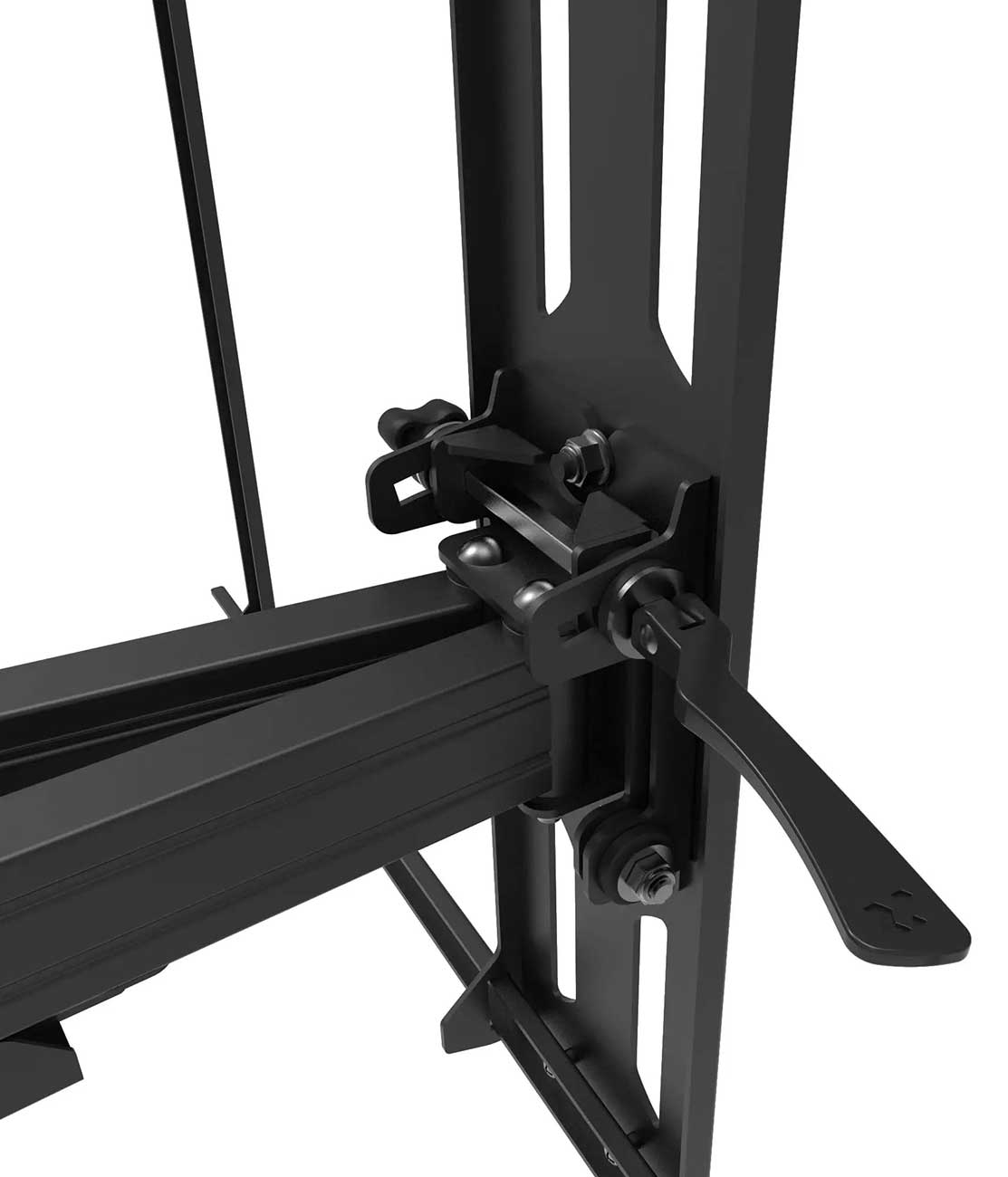

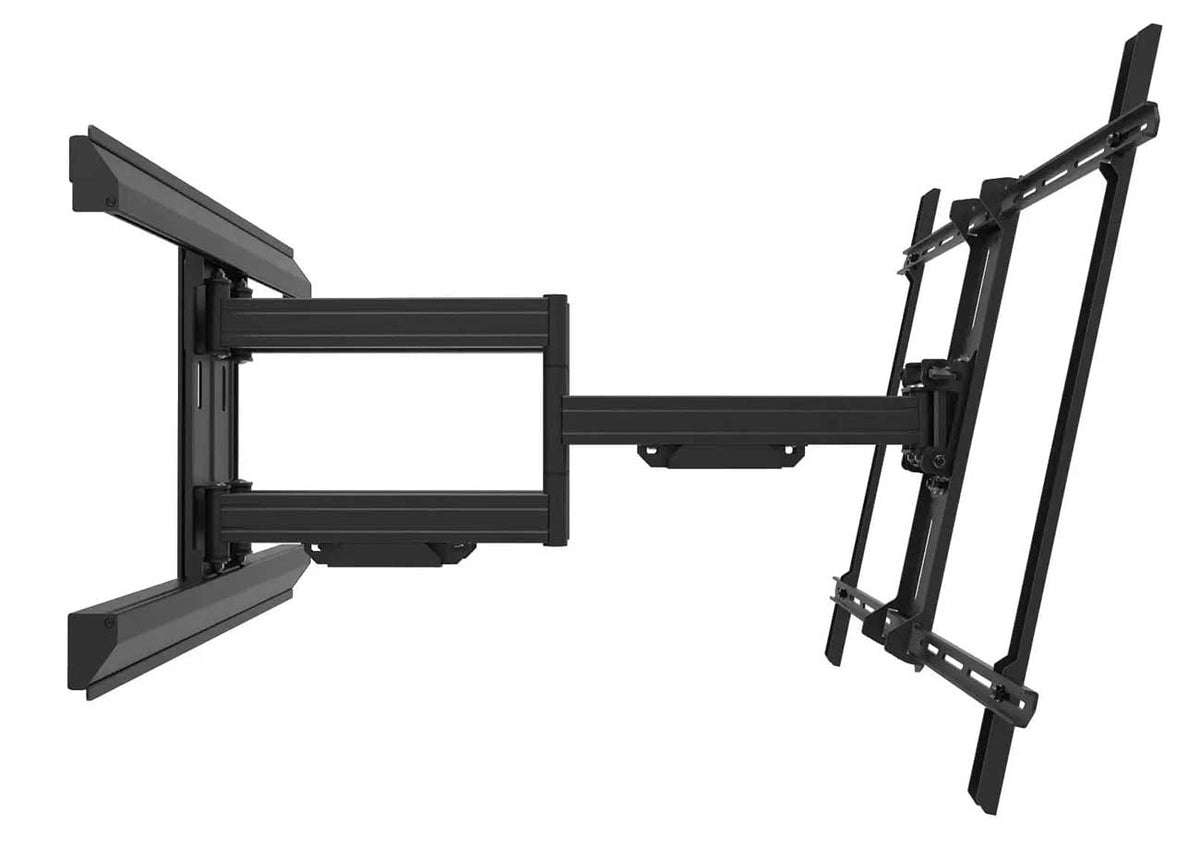

Toolless Tilt Mechanism
A toolless cam lever tilt mechanism allows for on-the-fly adjustments. Tilt your screen forward up to 12 degrees or backwards 3 degrees
Aluminum Covers
Maintain a clean, finished appearance while hiding any sign of installation with the aluminum wall plate covers on this fully featured TV wall mount.

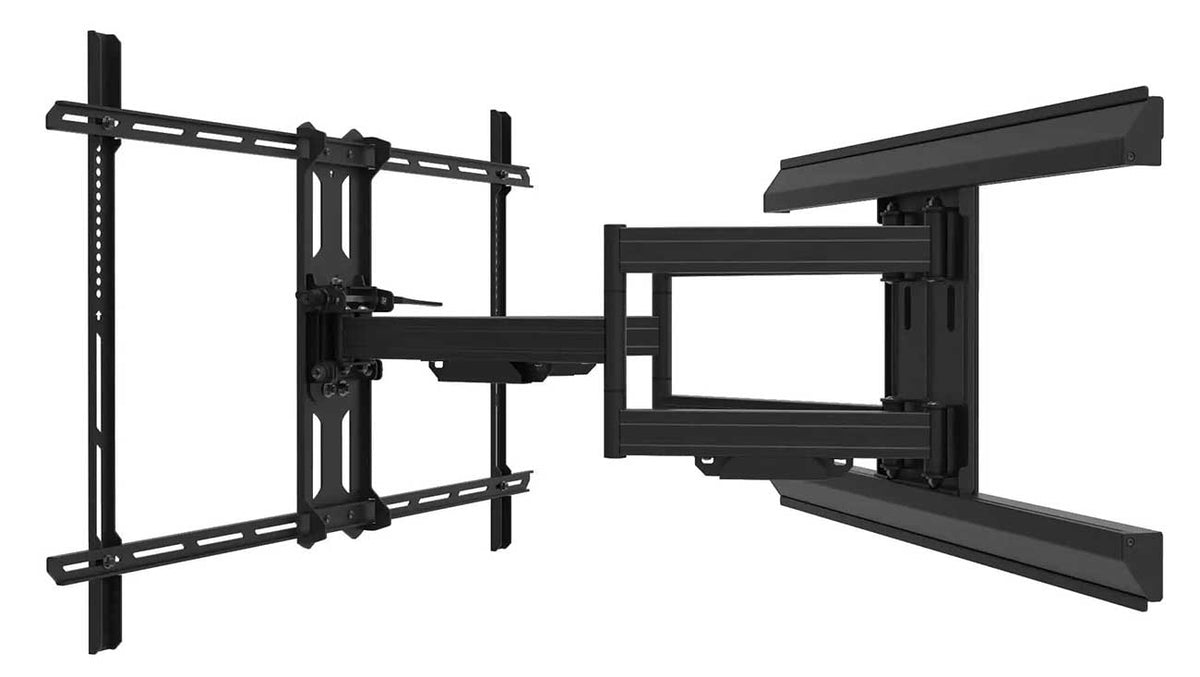

Swivels Up to 180 Degrees
Achieve the best viewing angle regardless of where you’re sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.
Designed to Last
PMX800’s cable management system is made of metal to stand up to regular use and reduce potential service calls.
Convenient Bolt Pack
Because every installation is unique, this pro series full motion wall mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Full Motion
Maximum TV Size Compatibility (in)
120
Minimum TV Size Compatibility (in)
55
Assembly Required
Yes
Compatibility
55" - 120" Displays
Outdoor
No
In the Box
TV Wall Mount, Paper Wall Template for Marking Pilot Holes, Installation Manual, All Mounting Hardware for Wood Stud and Concrete Installation
Maximum Extension (in)
31.3
Maximum TV Weight (lbs.)
200
Mount Material
Solid Steel
Max Mounting Pattern
900x600
Mounting Pattern
VESA
Post-Installation Leveling
10.2
Lateral Adjustment
Varies with screen
Mounting Surface
Wood stud, concrete
Product Finish
Black Powder Coat
Swivel Adjustment (Degrees)
90
Tilt Adjustment (Degrees)
12° / -3°
Warranty Information
Labor Warranty
10 Years Limited
Parts Warranty
10 Years Limited
Approximate Weight
Unit Weight (lbs.)
48.3
Package Weight (lbs)
56
Approximate Dimensions
Height (in)
25
Width (in)
37.8
Depth (in)
2.6
Package Size HxWxL (in)
5 x 16 x 36
