Kanto Pro Series Full Motion Wall Mount For Flat Panel TVs 50in - 100in - PMX700

Product Details

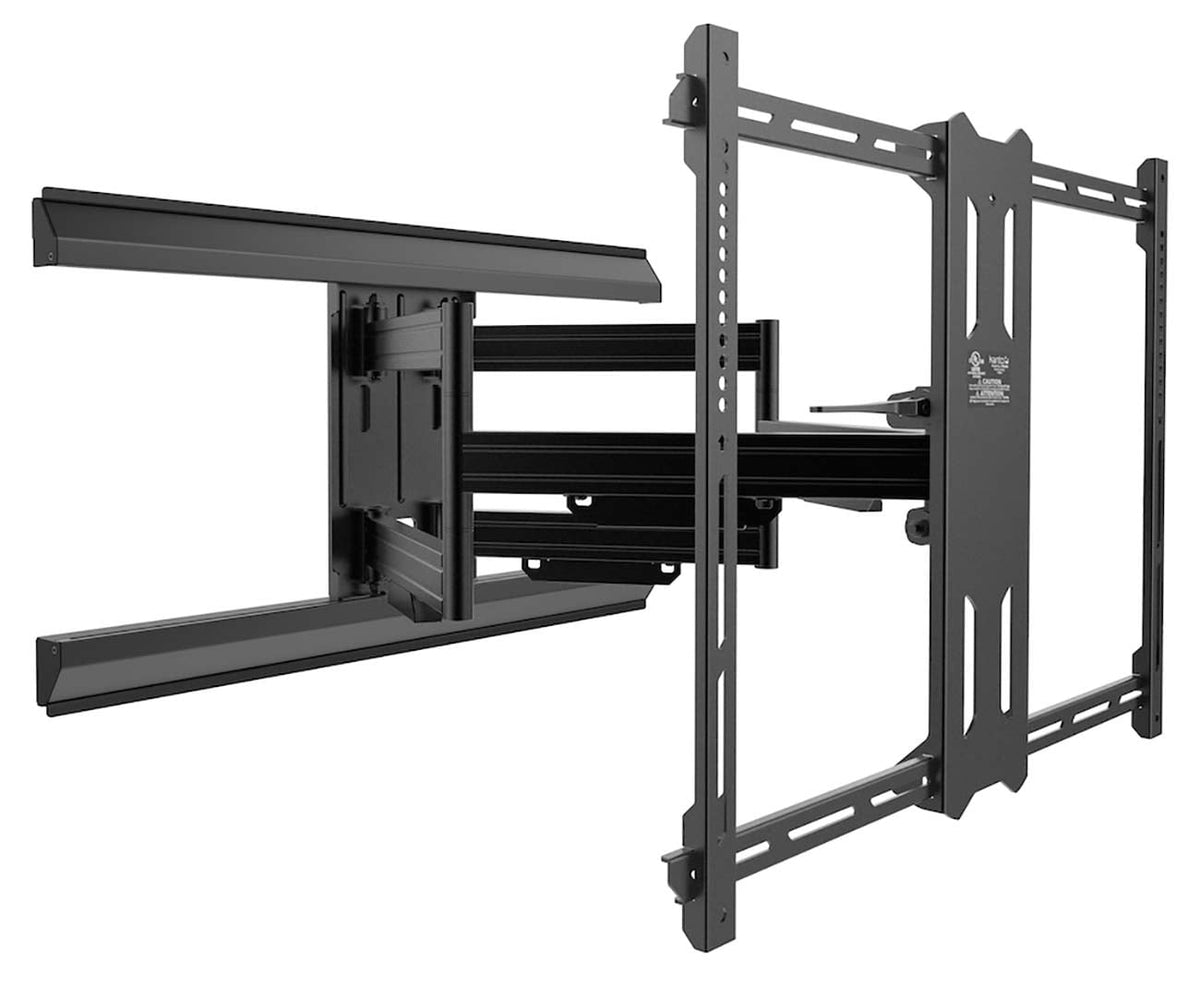

Kanto PMX700 Pro Series Full Motion Wall Mount For Flat Panel TVs 50" - 100"
Don’t let the size of your TV dictate where you put it. Capable of supporting TVs up to 100”, the PMX700 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 31.3” of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.6” from the wall when fully retracted and features cable management clips to keep your cables out of sight.
Features
Supports 150 Pounds
The PMX700’s solid steel frame safely holds up to 150 lb (68 kg), even at full extension.
Horizontal Offset
Center your TV on the wall regardless of where your studs are located by adjusting the PMX700’s arm assembly 11” (27.9 cm) left or right.
Low Profile Design
The unique design of the PMX700 allows your TV to sit 2.6 inches from the wall when fully pushed in.
Extends 31 Inches
Easily reach over fireplaces or out of recessed locations with 31.3” (79.5 cm) of extension.
Toolless Tilt Mechanism
Effortlessly tilt your TV 12° forward or 3° backward with the PMX700’s newly designed toolless tilt mechanism.
Aluminum Covers
Maintain a clean, finished appearance while hiding any sign of installation with the PDX700’s aluminum wall plate covers.
Swivels Up to 180 Degrees
Achieve the best viewing angle regardless of where you’re sitting by swiveling your TV up to 90 degrees left or right, depending on screen size.
Sleek Cable Management
Four cable management raceways located on the bottom of each arm help to keep your viewing area tidy.
Convenient Bolt Pack
Because every installation is unique, the PMX700 is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Full Motion
Maximum TV Size Compatibility (in)
100
Minimum TV Size Compatibility (in)
42
Assembly Required
Yes
Compatibility
42" - 100" Displays
Outdoor
No
In the Box
TV Wall Mount, Paper wall template for marking pilot holes, Installation Manual, All mounting hardware for wood stud and concrete installation
Maximum Extension (in)
31.3
Maximum TV Weight (lbs.)
150
Mount Material
Solid Steel
Max Mounting Pattern
700x500
Mounting Pattern
VESA
Lateral Adjustment
Varies with screen
Product Finish
Black Powder Coat
Swivel Adjustment (Degrees)
90
Tilt Adjustment (Degrees)
12° / -3°
Warranty Information
Labor Warranty
10 Years Limited
Parts Warranty
10 Years Limited
Approximate Weight
Unit Weight (lbs.)
44.5
Package Weight (lbs)
56
Approximate Dimensions
Height (in)
18.2
Width (in)
32.4
Depth (in)
2.6
Package Size HxWxL (in)
6 x 40 x 40
