DJI RS 4 Gimbal - CP.RN.00000343.04

Product Details
DJI CP.RN.00000343.04 RS 4 Gimbal
The DJI RS 4 lightweight commercial stabilizer supports next
-
generation
native vertical shooting with enhanced operation efficiency, improved
stabilization performance, and an upgraded accessory ecosystem. It
empowers solo cinematographers with a more professional and efficient
creative experience and the toolset to tell gripping visual stories.
Features
2nd-Gen Native Vertical Shooting
DJI RS 4 features a newly designed horizontal plate, enabling the second
generation of native vertical shooting for faster and simpler operation. Without
the need for additional accessories, you can simply release the horizontal plate
and secure it into the vertical position for an easy switch to vertical shooting1,
paving the
way for efficient vertical video creation.
2nd-Gen Automated Axis Locks
The automated axis locks allow RS 4 to quickly start working or enter sleep
mode, significantly enhancing shooting, transition, and storage efficiency.
Additionally, the axis locks
have smaller gaps when locked, further reducing
gimbal shake.
Our Smoothest Balancing Experience Yet
DJI RS 4 features a Teflon coating for all three axes, resulting in reduced
friction and smoother balancing.
When switching cameras or lenses,
the fine-tuning knob on the tilt axis can
move the camera forward or backward, achieving precise, millimeter-level balancing.
The upper quick-release plate has an added adjustable placement guide to
ensure secure camera mounting.
Automatic Screen Lock
The OLED touchscreen incorporates a new auto-lock feature. Once locked,
the screen will display the current gimbal and joystick modes at a low
brightness. This not only prevents accidental touches but also helps to
conserve battery power.
Excellent Payload Capacity
The lightweight body boasts a 3kg (6.6lbs) payload capacity. It can carry
mainstream mirrorless camera and lens combinations, enabling comfortable
holding with robust power.
Compared with the previous generation, RS 4's tilt axis has been extended by
8.5 mm, offering expanded balancing space. This allows you to mount
mainstream mirrorless camera and lens combinations along with accessories
like ND filters, broadening the scope for creative potential.
4th-Gen RS Stabilization Algorithm
DJI has comprehensively optimized the next
-
generation RS stabilization
algorithm for different usage scenarios. It strikes a superior balance between
stabilization strength and the tactile feel of camera movement, delivering both
excellent stabilization performance and an enhanced user experience.
Additionally, RS 4 offers significantly improved stability when vertical shooting,
easily steadying dynamic shots like running or low-angle perspectives.
Bluetooth Wireless Control
DJI RS 4 can remotely control camera shutter and lens zoom with Dual-Mode
Bluetooth technology. In zoom control mode, you can use the joystick to
control Power Zoom for PZ lenses and Clear Image Zoom2,
obtaining a
native zoom experience. A camera only needs to be paired once, after which it
can reconnect seamlessly and automatically.
Support For DJI Focus Pro Motor
When paired with the new DJI Focus Pro Motor3,DJI RS 4 allows you to
control the lens focus via dial or adjust the lens zoom via joystick. This smooth
operation enables efficient lens control.
Trigger Function Customization
The trigger function can be customized to FPV mode, where pressing and
holding
the trigger makes the gimbal's three axes follow the direction of the
grip's movement. This is particularly useful for shooting rotational footage or
simulating POV.
Gimbal Mode Switch
By toggling the gimbal mode switch, you can quickly switch between PF, PTF, and FPV modes. You can also set FPV mode to 3D Roll 360 mode or Custom
mode according to the shooting requirements, ensuring RS 4 is precision-ready.
1 The gimbal requires rebalancing after switching between horizontal and
vertical shooting.
2 For more details on camera and lens compatibility, please refer to the Ronin
Series Compatibility Search page.
3 The DJI RS 4 Combo includes a DJI Focus Pro Motor. For the standalone
version, the motor is sold separately.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Type
Gimbal
Compatibility
Digital Cameras
Bluetooth
Yes
Port(s) / Connections
USB-C, HDMI Mini
Connectivity
Bluetooth, USB-C
Rotation Range
-95° to +240°
Tilting Angle
-112° to +214°
Follow Focus Capability
No
Maximum Control Speed
360 °/s
Mounting Pattern
1/4" Threaded Hole
Operating Frequency
2.40‌‌0-2.4835 GHz
Operating Temperature
-20° to 45° C (-4° to 113° F)
Approx. Battery Runtime
12 Hours
Charging Time
Approx. 2.5 Hours
Battery Capacity (mAh)
3000
Battery Energy (Wh)
21
Battery Type
LiPo 2S
Voltage
3.7 V

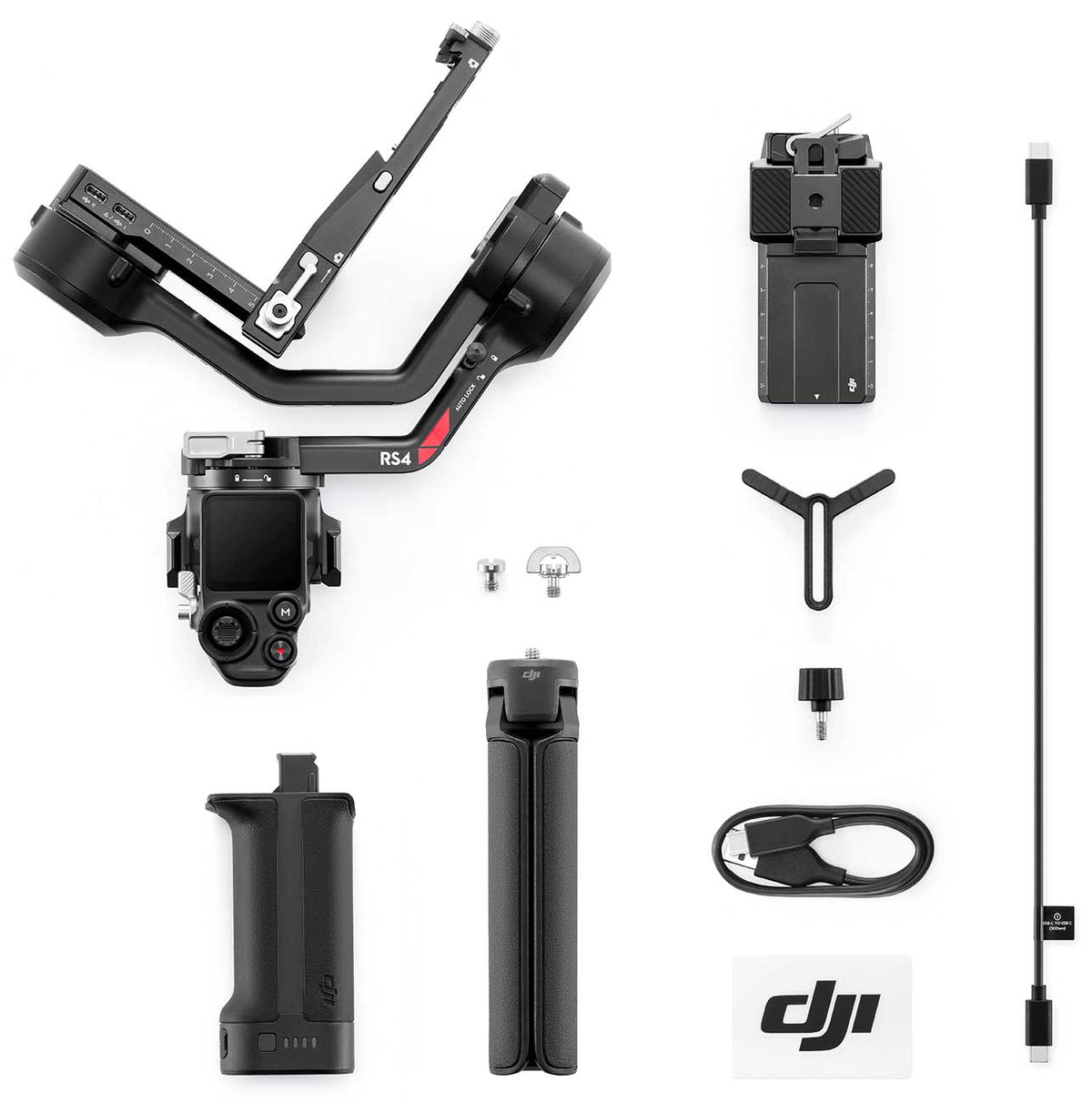

In the Box
Gimbal, BG21 Battery Grip, Quick-Release Plate, Extended Grip/Tripod, Lens-Fastening Support, Multi-Camera Control Cable, USB-C Charging Cable, DJI Logo Sticker, Screw Kit
Approximate Dimensions
Unfolded Height (in)
7.44
Unfolded Width (in)
7.52
Unfolded Depth (in)
14.57
Folded Height (in)
2.95
Folded Width (in)
10.04
Folded Depth (in)
9.65
Package Size HxWxL (in)
4 x 9 x 13
Approximate Weight
Unit Weight (lbs.)
2.35
Maximum Load (lbs.)
6.6
Package Weight (lbs)
5
Warranty Information
Parts Warranty
1 Year Limited
Labor Warranty
1 Year Limited
