Canon RF24mm F1.4 L VCM Lens - 6907C002

Product Details
Canon 6907C002 RF24mm F1.4 L VCM Lens
The RF24mm F1.4 L VCM is part of the expanding Hybrid lens series, targeting a wide range of still-image and video shooters, with a combination of wide-angle coverage, a fast f/1.4 maximum aperture, and excellent optical design. On a full frame camera this lens gives you a wide-angle look which has for decades been used to add drama to photos and videos, and has always been a very popular for establishing shots. On the video side, this lens really shines with a dedicated manual Iris ring, and a new linear focus motor called a VCM (Voice Coil Motor) that is virtually silent. The VCM works in tandem with a Nano USM on the floating focus unit for incredibly fast autofocus. And finally, focus breathing is barely noticeable on this incredibly versatile lens.
Key Features
New 24mm L-Series hybrid lens featuring an iris ring for manual iris control.
A Nano USM is used for floating focus and a Voice Coil Motor (VCM) for rear focus - great for video.
L-Series level durability and weather-resistant construction for use in harsh environments helps ensure reliability and dependability.
Incredibly minimal focus breathing - within 2.5% of the entire range in the lens alone! Further electronic breathing correction brings it to within 1.0% of the entire range.
Air Sphere Coating (ASC), and Fluorine Coating helps to significantly reduce lens ghosting and flare.
This lens features 2 UD elements to minimize chromatic aberration, and 1 aspherical lens for incredible quality from edge-to-edge.
15 Elements in 11 groups.
11-blade aperture.
9.4” (0.24m) Minimum Focus Distance with 0.17x maximum magnification.
Equipped with a user-programmable lens function button.
Comes with attachable rear filter holder.
Features
Incredible Feature Set From an Incredible Lens Series
This lens has a lot going for it. You already know about the VCM and Iris control ring, but there is so much more. You can attach filters to this lens in two ways, a front 67mm screw thread allows for screw-on filters, and in the back of the lens is a cut gel filter holder (bundled). You also have a control ring and a control button both of which you can assign functions to. This lens is also dust and weather resistant, has two aspheric lenses, and ASC (Air Sphere Coating), SSC (Super Spectra Coating), and Fluorine Coating to significantly reduce ghosting and flare.
Excellent Image Quality
Again, thanks to the Canon RF lens mount, the RF24mm F1.4 L VCM lens offers great optical quality. Its optical design includes two UD lenses and one aspherical lens as well as Air Sphere Coating (ASC), and Super Spectra Coating (SSC) to reduce ghosting, and Fluorine coating on the front and rear lens surfaces to help mitigate smudges. On top of that, this lens features the same dust- and water-resistance found on every L-series lens with seals around the Control ring, focus ring, zoom ring, operation panel, and lens mount.
It’s Showtime!

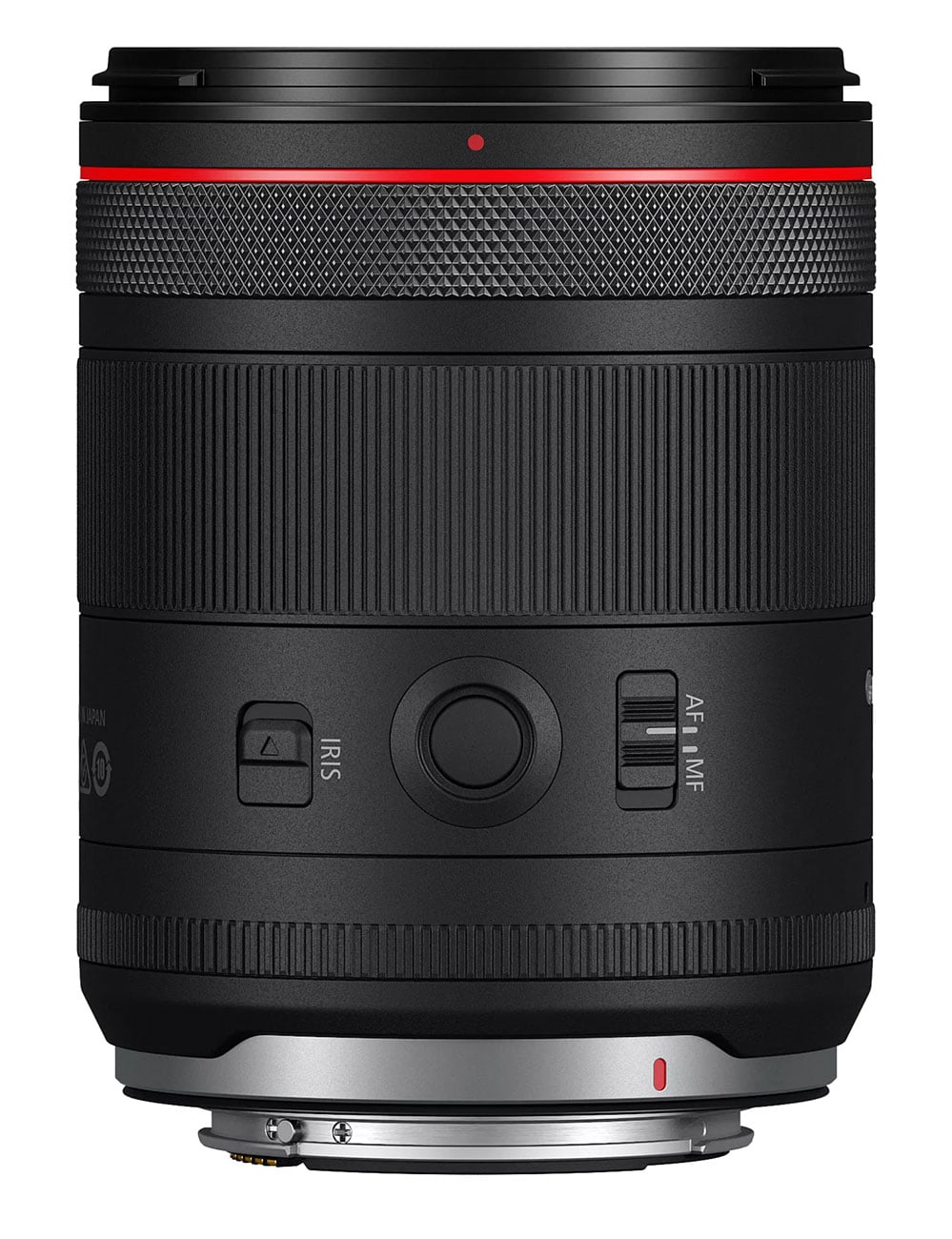

This lens is part of a new family of “hybrid” lenses that focus on video creation as much as still photography. To that end, this lens features a manual iris control ring so you can smoothly change the aperture from f/1.4 to f/16 during video capture. Thanks to advancements in lens design, focus breathing on this lens is extremely minimal, and backlit images are sharp. Combine all of these features, and you’ve got a great video lens in your hands.
Let’s Focus
The RF24mm F1.4 L VCM is part of a series of “hybrid” lenses that focus on video performance as much as still photography. One of these new features is a change to how the focus system works. There is a Nano USM that controls the floating focus unit, and a VCM (Voice Coil Motor) that powers the rear focus unit. These focus motors work in tandem for incredible speed in near silence. One important note about the VCM is that it requires power to hold its position, so when the camera is off, or the lens is not attached to a camera, you may hear and feel slight movement. This is normal, and there is extra cushioning inside the lens to help prevent damage in this situation.
Get Close
With a minimum focus distance of just 9.4 inches , and an f/1.4 aperture you can capture some really compelling imagery that is unlike anything else.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Compatibility
Canon
Type
Standard Zoom
Macro
No
Filter Size
67mm
Lens Elements
15
Lens Format Coverage
Full Frame
Lens Groups
11
Fixed Focal Length
24mm
Focal Length (35mm Film Equivalent)
24mm
Aspherical Elements
1
Maximum Aperture
f/ 1.4
Minimum Aperture
f/ 16
Minimum Focus Distance
0.24m (9.4 in)
Maximum Magnification
0.17x
Maximum Diameter
76.5mm
Lens Mount Compatibility
Canon RF-Mount
Angle of View
Approx. 84º
Focus Type
Auto/Manual
Aperture Blades
11
Lens Construction
15 Elements in 11 Groups
Special Elements
2 UD Lenses, 1 Aspherical Lenses
Dust/Water Resistant
Yes
In the Box

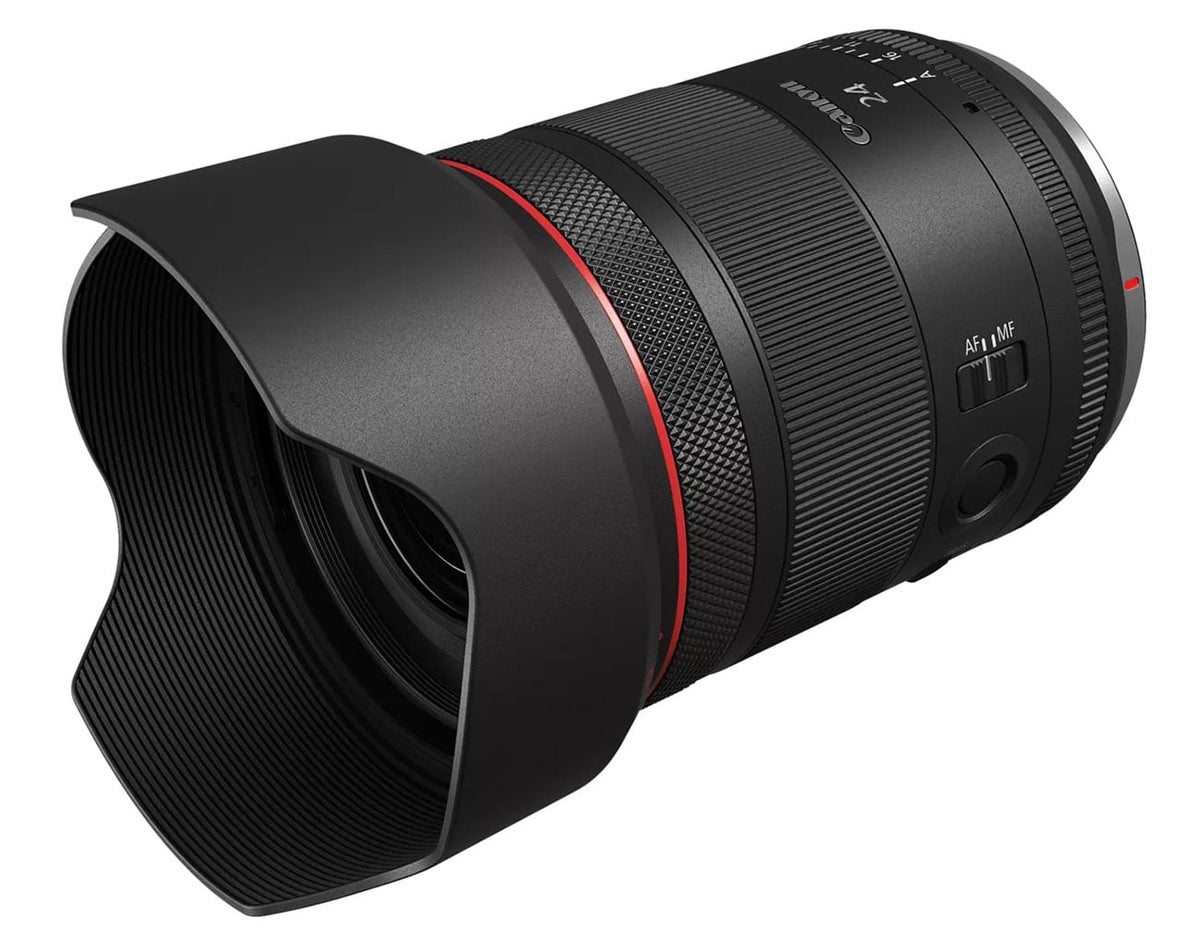

RF24MM F1.4 L VCM Lens, Lens Hood EW-73G, LENS CAP E-67 II, Lens Case LP1219, Dust Cap RF, Rear Filter Holder
Focusing System
Canon Nano USM (Ultrasonic Motor) and VCM (Voice Coil Motor)
Approximate Dimensions
Diameter (in)
3
Length (in)
3.9
Package Size HxWxL (in)
11 x 6 x 6
Warranty Information
Labor Warranty
1 Year Limited
Parts Warranty
1 Year Limited
Approximate Weight
Unit Weight (lbs.)
1.2
Package Weight (lbs)
2
