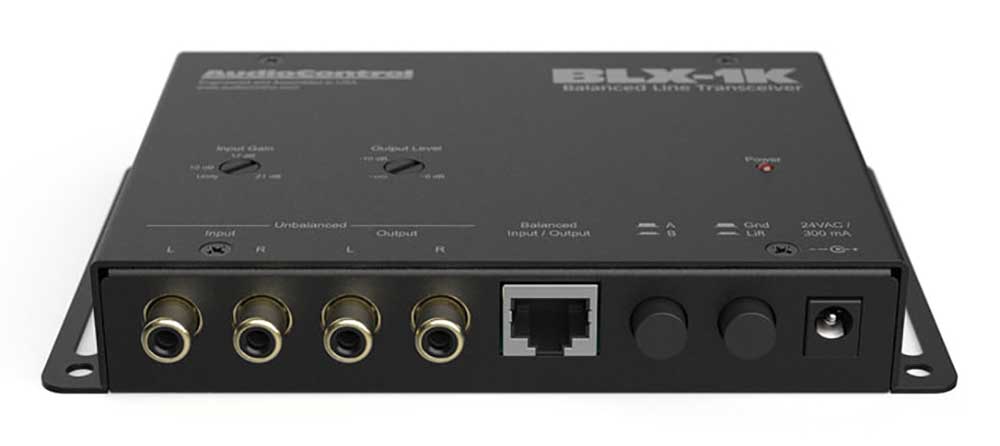

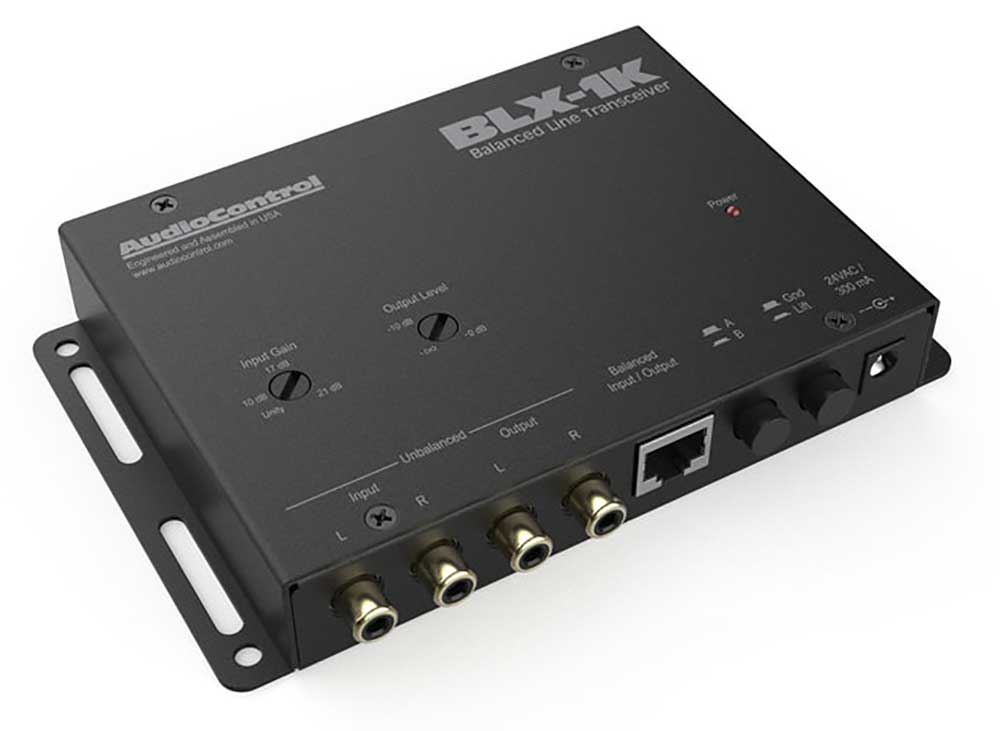

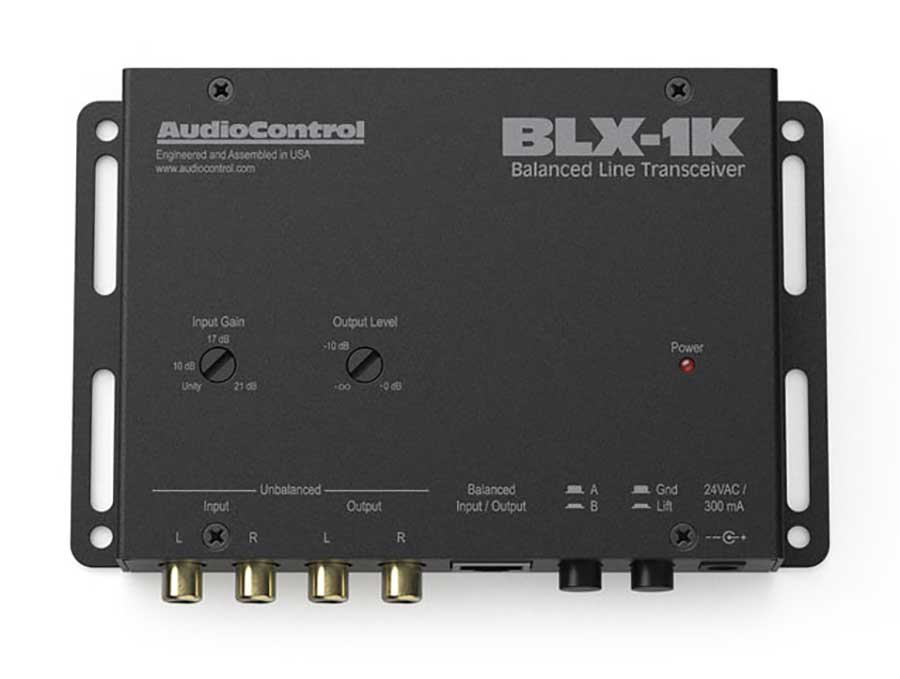

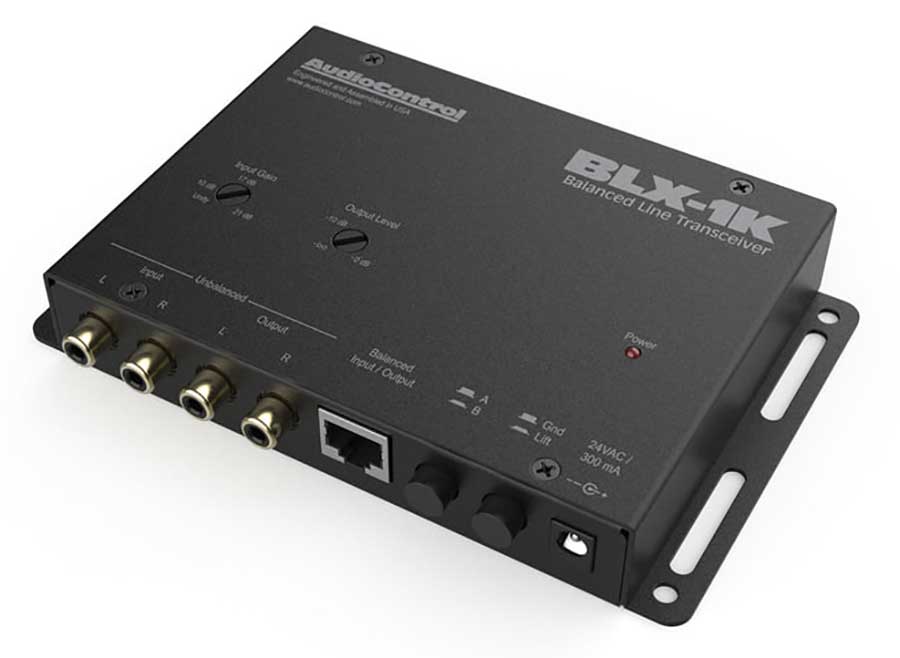

Audio Control Balanced Line Transceiver - BLX-1K

Product Details
Audio Control BLX-1K Balanced Line Transceiver
Professional A/V installers often encounter projects that require long cable runs, and the BLX-1K has been engineered as a premium, simple solution to efficiently address these challenges. The BLX-1K is a signal extender that sends and receives a fully balanced, noise-rejecting, analog audio signal up to 1000 feet over standard Cat5/6 cable.
Designed to be used in pairs at both ends of the signal path, each BLX-1K contains a 2-channel receive stage as well as a 2-channel transmit stage, enabling audio to travel in both directions across a span of standard Cat5/6. Once wired connections are made, the A/B button on one unit is pressed to reverse the signal path. Signal gain can then be set to complete the installation. The BLX-1K comes equipped with a 24 VAC transformer for easy connection and ultra-quiet performance.
The BLX-1K delivers a stout output of nearly 8 Volts RMS with an exceptionally low noise floor, providing a pure, crystal clear audio signal over long Ethernet runs—the ultimate problem-solver for A/V installers.
Read More
California customers
Proposition 65 WARNING
WARNING: Cancer and Reproductive Harm

Specifications
General
Color
Black
Input(s)
2 x RCA Unbalanced, 1 x RJ-45 Balanced
Output(s)
2 x RCA Unbalanced, 1 x RJ-45 Balanced
Number Of Inputs
3
Number of Outputs
3
Frequency Response
20 Hz to 20 kHz, +/- 1 dB
In the Box
BLX-1K, AC Adapter, Manual, Warranty
Type
Balanced Line Transceiver
Power Supply
24 VAC
Warranty Information
Parts Warranty
5 Years Limited
Labor Warranty
5 Years Limited
Approximate Weight
Unit Weight (lbs.)
1
Package Weight (lbs)
3
Approximate Dimensions
Height (in)
1
Width (in)
6.2
Depth (in)
4.3
Package Size HxWxL (in)
4 x 11 x 14
