Atlona AT-OME-EX-RX HDBaseT Receiver For HDMI With USB
The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With a matching HDBaseT transmitter, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-RX includes two USB interfaces for devices such as a camera, soundbar, or display. This receiver is ideal for use with Omega Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.
The OME-EX-RX incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-RX can remotely power the OME-EX-TX or other Omega Series transmitter through Power over Ethernet (PoE). It can also be remotely powered by an Omega Series switcher. The Ethernet port on the OME-EX-RX is for IP pass-through with the transmitter.
Key Features

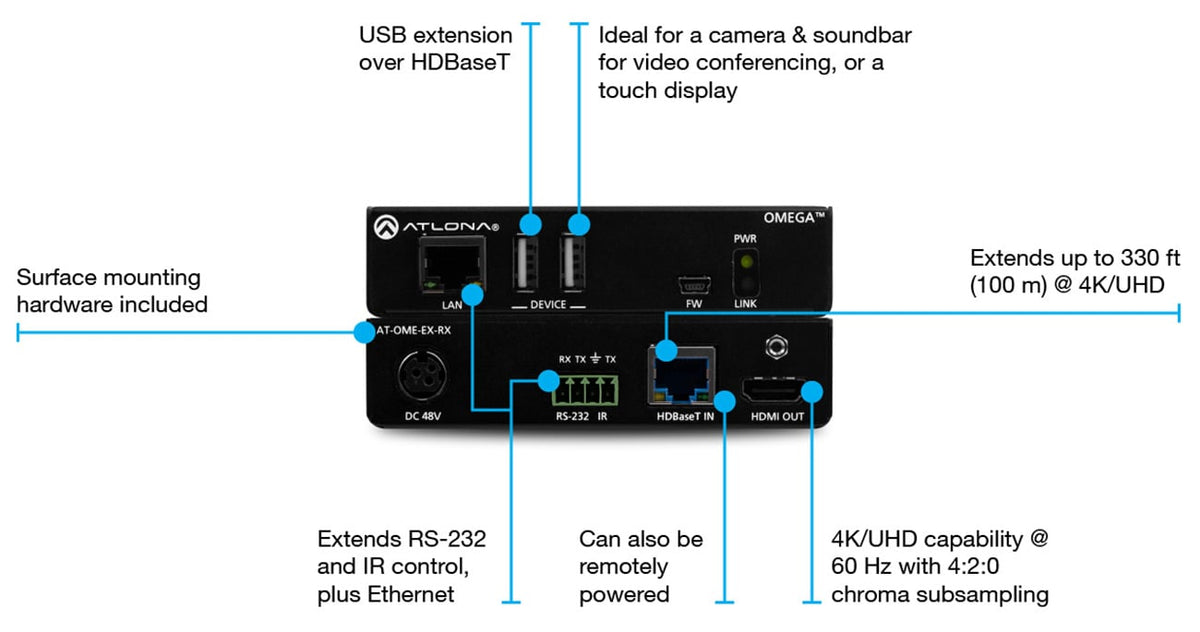

HDBaseT receiver for HDMI®, Ethernet, power, control, and USB
USB 2.0 interfacing and extension up to 330 feet (100 meters)
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
HDCP 2.2 compliant
Local or remote PoE (Power over Ethernet) powering
Applications
Complete system integration – The OME-EX-RX and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
Video conferencing and interactive displays – The OME-EX-RX and a compatible Omega Series transmitter or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones. They can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location.
Product compatibility
The OME-EX-RX is not compatible with the Atlona HDVS-300 system for USB extension.
Features
Video, audio, power, and data over category cable utilizing HDBaseT technology
Receives 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
Uses easy-to-integrate category cable for low-cost, reliable system installation
USB 2.0 interfacing and extension* up to 330 feet (100 meters)
Two USB type A ports for peripheral devices such as a camera or display
Provides an ideal USB integration solution for software video conferencing and other applications
* Maximum 120 Mbps data rate supported over HDBaseT.
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players
HDCP 2.2 compliant
Adheres to latest specification for High-bandwidth Digital Content Protection*
Allows protected content stream to pass between authenticated devices
* HDBaseT transmitter or switcher must also be HDCP 2.2 compliant.
Local or remote PoE (Power over Ethernet) powering
Supplies industry standard IEEE 802.3af PoE over HDBaseT to an OME-EX-TX or other Omega Series transmitter
Also can be remotely powered by an Omega Series switcher with an HDBaseT output
Multi-channel audio compliant
Passes through multi-channel audio formats
Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
Field-updatable firmware
Device can be updated in the field via the USB port
Front panel power and signal status LEDs
LED indicators provide power and HDBaseT link status information
Provides convenient setup and troubleshooting
Low-profile, 1.02 inch (26 mm) high enclosure
Easy installation into confined spaces below tables, in furniture, and behind or above displays
Award-winning 10 year limited product warranty
Ensures long-term product reliability and performance in commercial and residential systems
Specify, purchase, and install with confidence
Specifications
Video
HDMI Specification: HDMI 2.0, HDCP 2.2
TMDS Clock: 300 MHz
UHD/HD: 4096×2160(DCI)@60*/30/24 Hz, 3840×2160(UHD)@60*/50/24/25/30 Hz, [email protected]/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
Color Space: YUV, RGB
Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
Color Depth: 8-bit, 10-bit, 12-bit
Audio
Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X
Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth: Up to 24-bit
USB
Signal: 2.0
Maximum Data Rate: 120 Mbps
Control
CEC: Pass-through
RS-232: Pass-through from control system to sink device; supports baud rates from 2400 to 115200
IR: Pass-through from control system to sink device
IP: Pass-through from control system to sink device up to 100 Mbps over HDBaseT

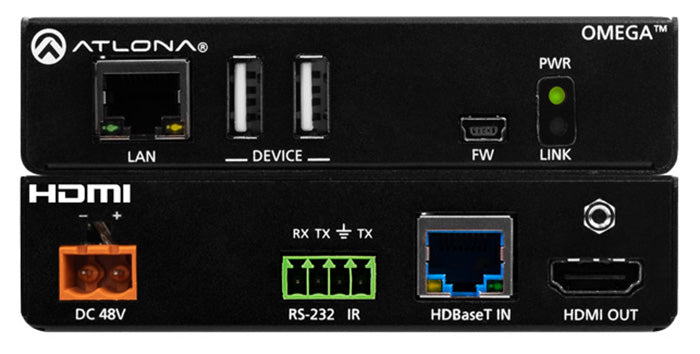

Connectors
HDMI OUT: 1 – Type A, 19-pin female
FW: 1 – mini-USB
HDBaseT OUT: 1 – RJ45
DEVICE: 2 – USB Type-A
LAN: 1 – RJ45, 10/100 Mbps
RS-232 / IR: 1 – captive screw, 4-pin
DC 48V: 1 – 3-pin DIN
Indicators and Controls
PWR LED indicator
LINK LED indicator
Resolution / Distance
HDMI IN/OUT
4K/UHD: 15 ft.
1080p: 30 ft.
CAT5e
4K/UHD: 295 ft.
1080p: 330 ft.
CAT6/6a/7
4K/UHD: 330 ft.
1080p: 330 ft.
Power
Consumption: 18.67 W
USB Power: 2.5 W per USB device interface
External Power Supply
Input: 100 – 240 V AC, 50/60 Hz
Output: 48 V, 0.83 A DC
Safety: CE, FCC, cULus
Environmental
Operating Temperature: 0° to 122° F
Storage Temperature: -4° to +140° F
Operating Humidity (RH): +20 to +90%, non-condensing
Chassis
Safety: CE, RoHS, FCC
What's In The Box
Installation guide
Surface mounting hardware
External universal power supply
Approximate Dimensions
Unit: 1.02" x 8.62" x 5.98"
Power Supply: 1.42" x 1.81" x 4.41"
Approximate Weight
Unit: 1.91 lbs
Shipping: 3 lbs
Warranty Information
Manufacturer Warranty (authorized online retailer): 10 Years Limited
